DONPOL Azul
Sloping roofs
DONPOL Azul is an expanded polystyrene (EPS) panel for thermal insulation which comply with the technical specifications of the Spanish UNE-EN 13163 standard, in blue and a customised mechanised cut to facilitate placing and breakage of thermal bridges.

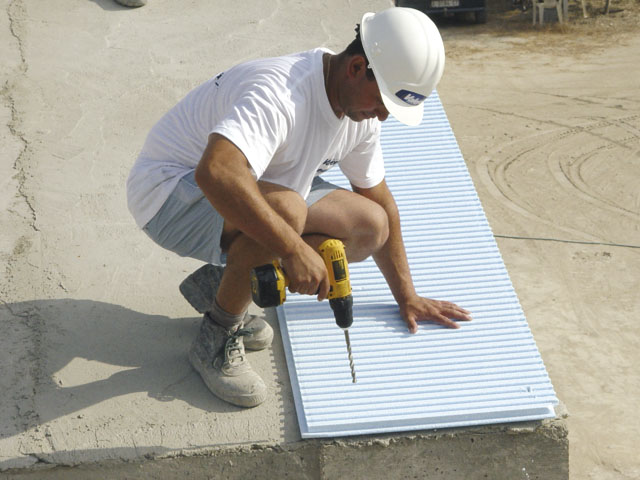

Also available in a “Greek pattern” for better adherence of the protection layer on sloping roofs.
With a thermal conductivity of 0,033 W/mK, greater thermal resistance is achieved with less thickness than others solutions.
Also, his resistance to compression of 150 kPa, it is specially recommended for use in sloping roofs and non-walkable flat roofs.
It can be manufactured in any thickness without losing thermal properties, that means, without its thermal conductivity value worsening, as it is stable in all its thickness.
Construction detail

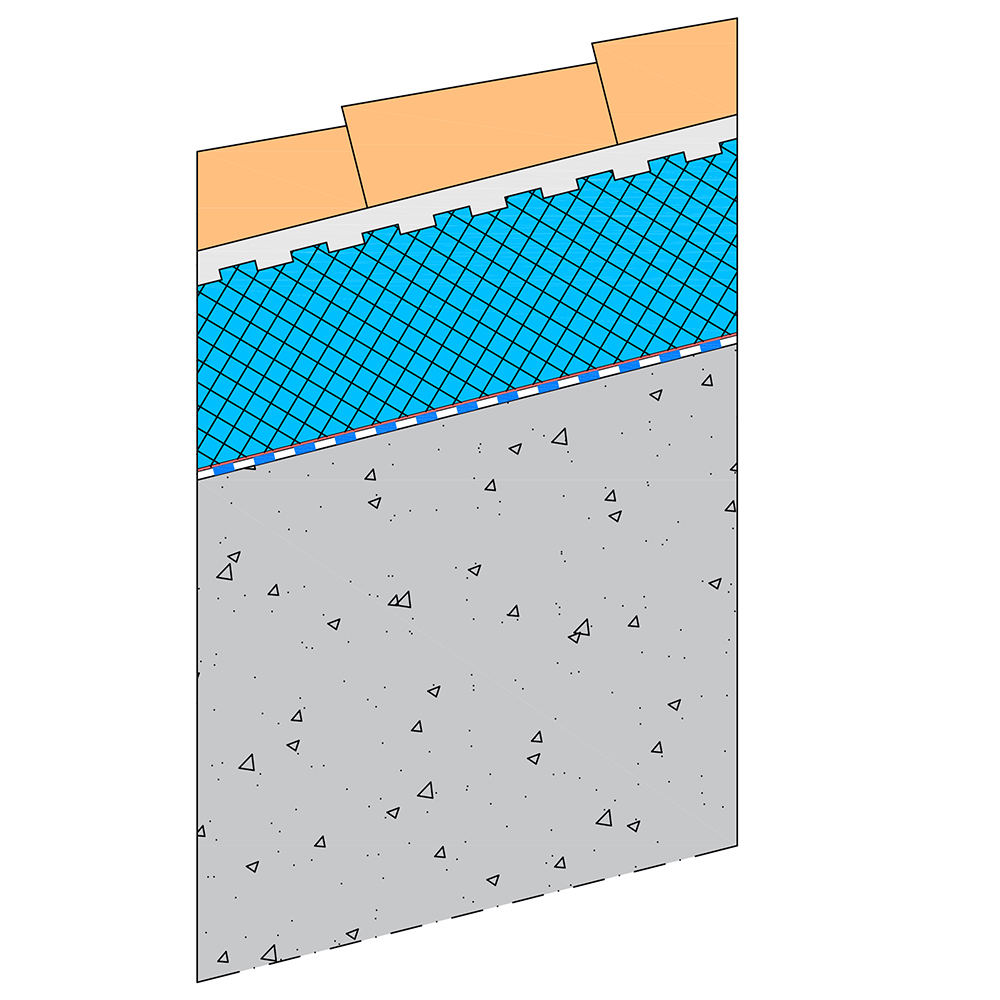

Example 1

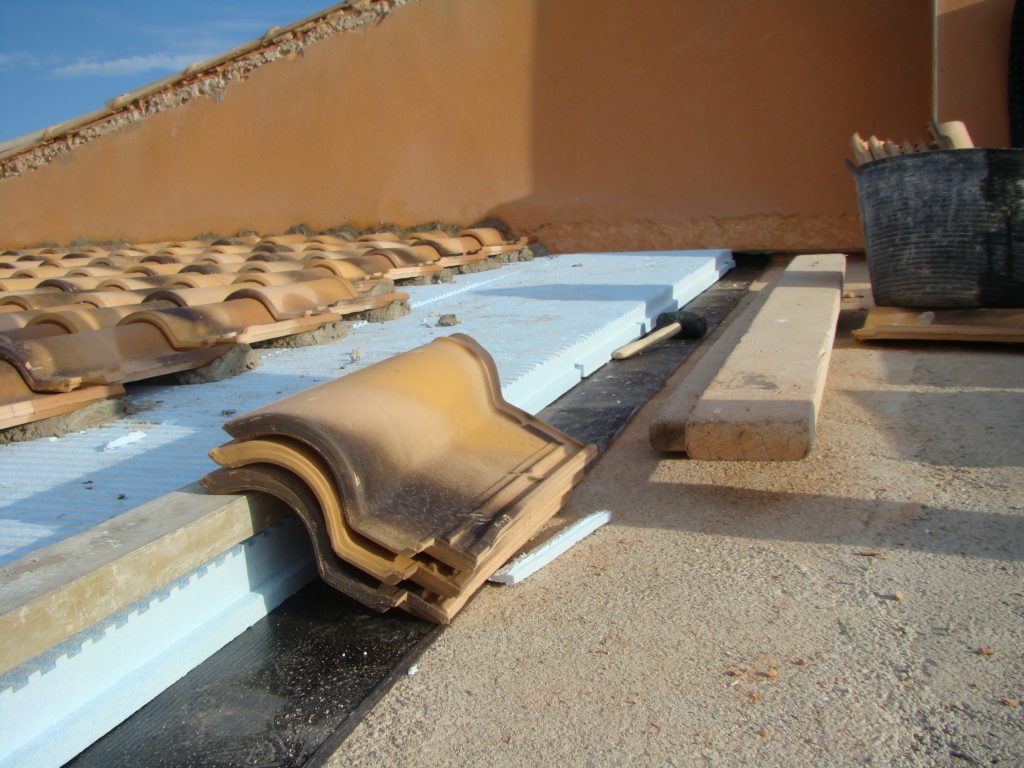

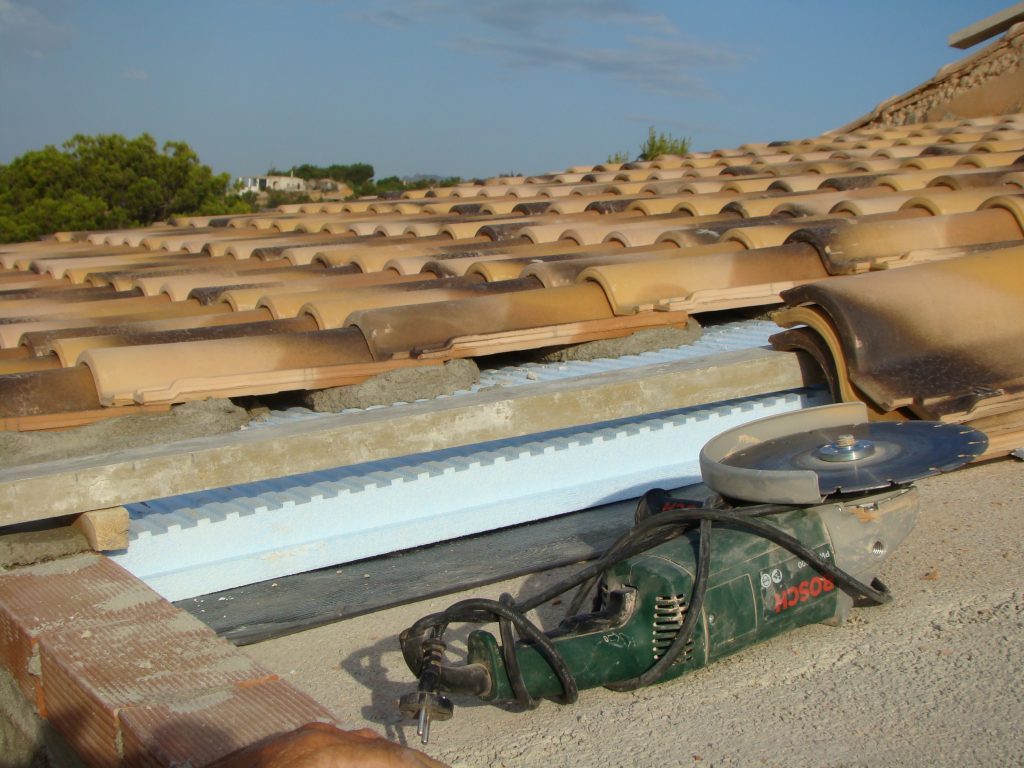

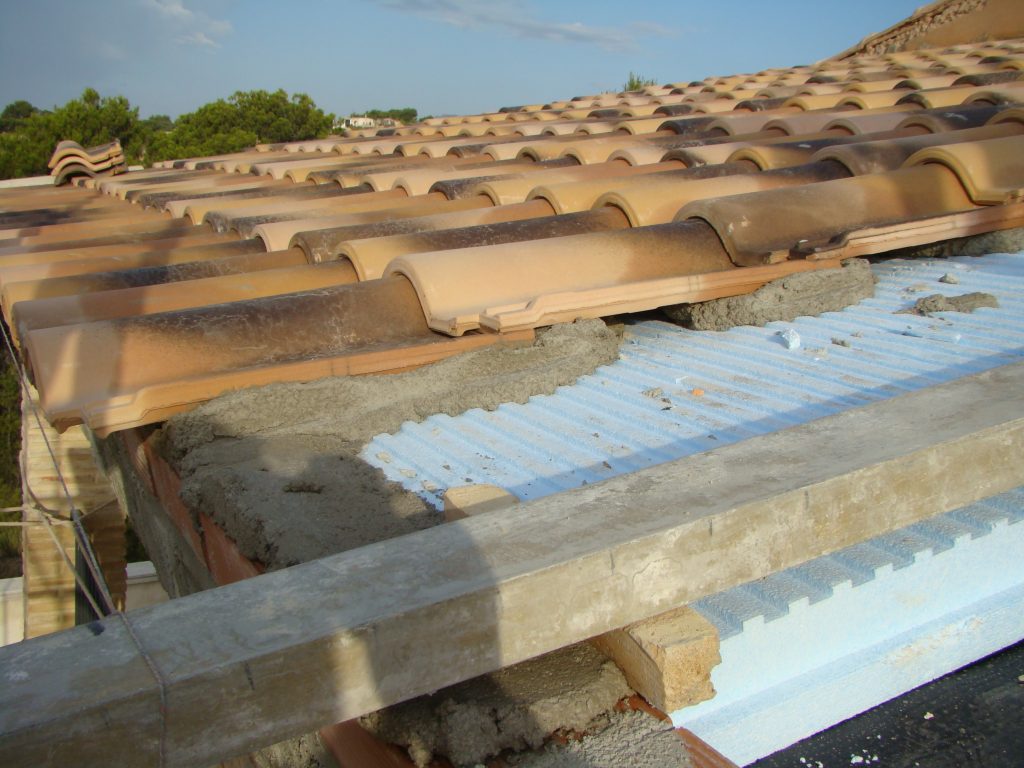

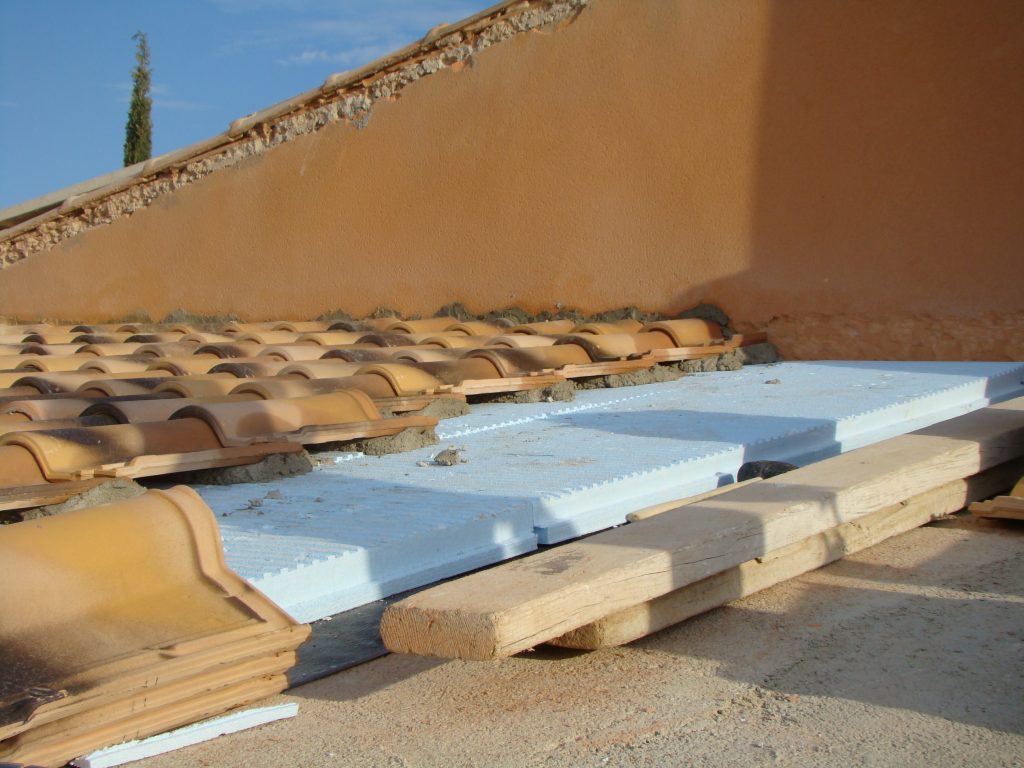

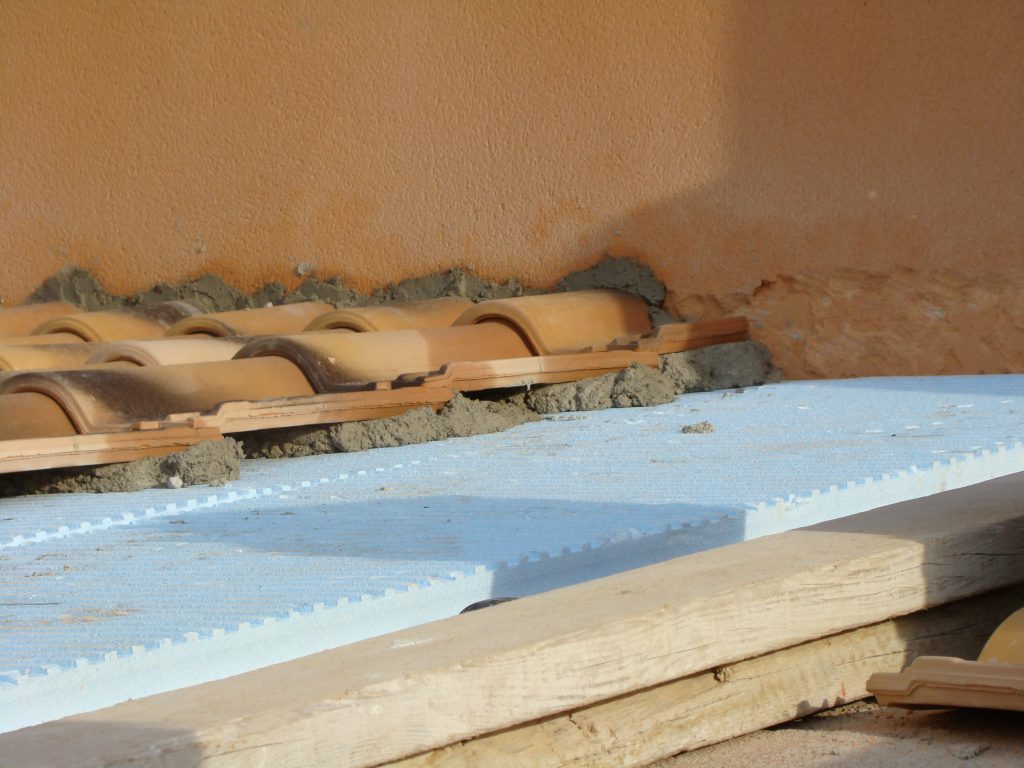

Application on slanted, non-transitable, slanted wrought, non-ventilated, roof tile protection layer over insulation
SECTION
3D DETAIL
LEGEND
- Protection layer: roof tile
- Mortar
- Thermal insulation: DONPOL AZUL [greek pattern] (λ=0,033 W/mK)
- Separating layer: geotextile
- Waterproof sheet
- Reinforced concrete slab edge
| Thermal insulation - Compliance with CTE - DB HE Dec. 2019 | |||
| Weather area | Thickness "e" (mm) |
“U” thermal transmittance of solution (W/m2K) |
“U” thermal transmittance recommended in accordance with schedule E -DB HE (Dec. 2019) (W/m2K) |
|---|---|---|---|
| α | 50 | 0,49 | 0,50 |
| A | 60 | 0,43 | 0,44 |
| B | 90 | 0,31 | 0,33 |
| C | 130 | 0,22 | 0,23 |
| D | 130 | 0,22 | 0,22 |
| E | 160 | 0,19 | 0,19 |
Example 2
Application on slanted, non-transitable, slanted wrought, non-ventilated, roof tile protection layer on wooden battens
SECTION
3D DETAIL
LEGEND
- Protection layer: roof tile
- Wooden battens
- Air cavity
- Thermal insulation: DONPOL AZUL (λ=0,033 W/mK)
- Separating layer: geotextile
- Waterproof sheet
- Reinforced concrete slab edge
| Thermal insulation - Compliance with CTE - DB HE Dec. 2019 | |||
| Weather area | Thickness "e" (mm) |
“U” thermal transmittance of solution (W/m2K) |
“U” thermal transmittance recommended in accordance with schedule E -DB HE (Dec. 2019) (W/m2K) |
|---|---|---|---|
| α | 50 | 0,45 | 0,50 |
| A | 60 | 0,40 | 0,44 |
| B | 80 | 0,32 | 0,33 |
| C | 120 | 0,23 | 0,23 |
| D | 130 | 0,22 | 0,22 |
| E | 150 | 0,19 | 0,19 |
| Recommended mechanical characteristics on roofing tile (with gobb o tile on insulator) and traditional non-passable traditional planes in accordance with UNE 92181-2017 |
|
| Resistance to compression CS(10) | Resistance to compression CS(10) in accordance with UNE 92181 standard |
| 150 | 150 |
DESCRIPTIVE REPORT
___m² of rigid expanded polystyrene (EPS) foam panel, Donpol Azul “VALERO”, in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0,033 W/(mK), Euroclass E reaction to fire, EPS designation code ‐ EN 13163-L3-W3-T2-S5-P10-CS(10)150-BS250.
ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS
FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS
With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)
TECHNICAL INFORMATION
| Thermal conductivity (λ) : | 0,033 W/mK |
| Compression resistance: | ≥ 150 kPa |
| Thickness(1): | From 30 mm |
| Standard lengths: | 1000 mm and 2000 mm |
| Standard width: | 600 mm |
| (1) Cut to size in multiples of 5 mm Contact us for other measurements |
|
| Cut: |  |
| Surface: |   |
| For more information, contact us | |
