DONPOL Verde Hidrófobo

Inverted covers

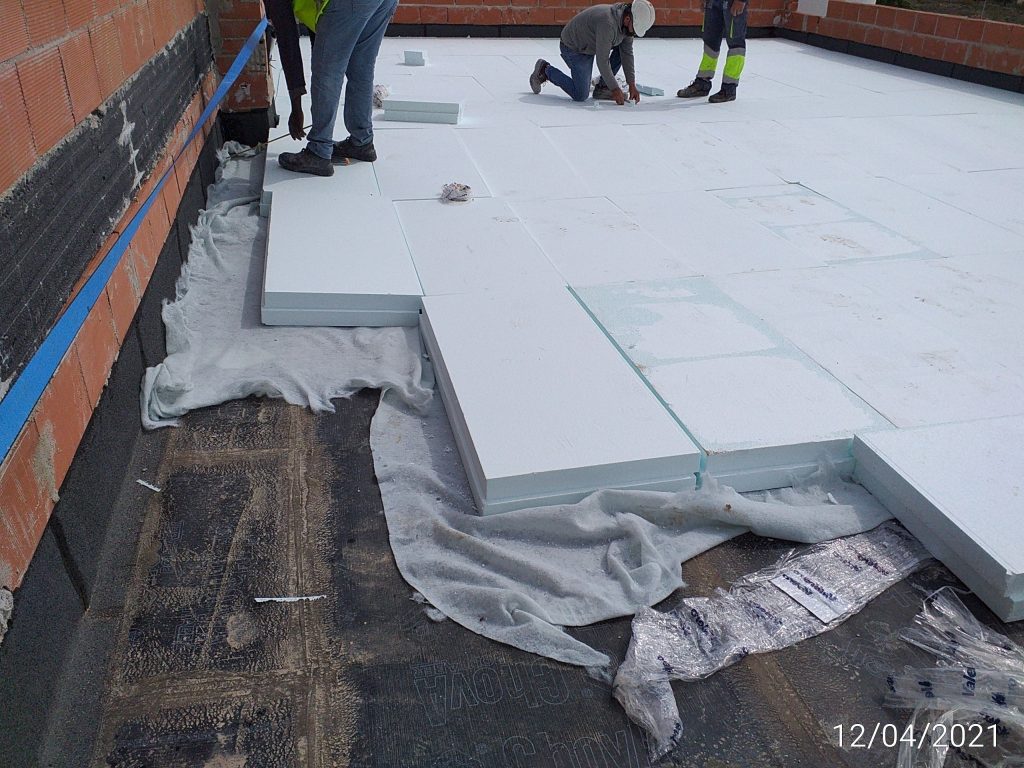

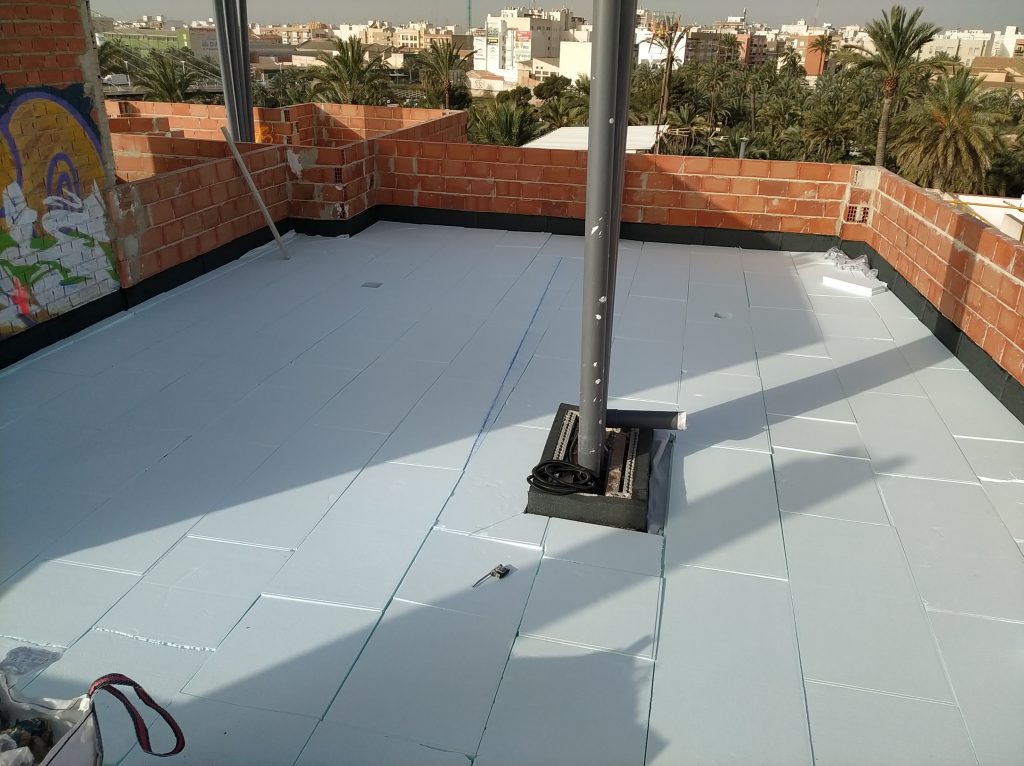

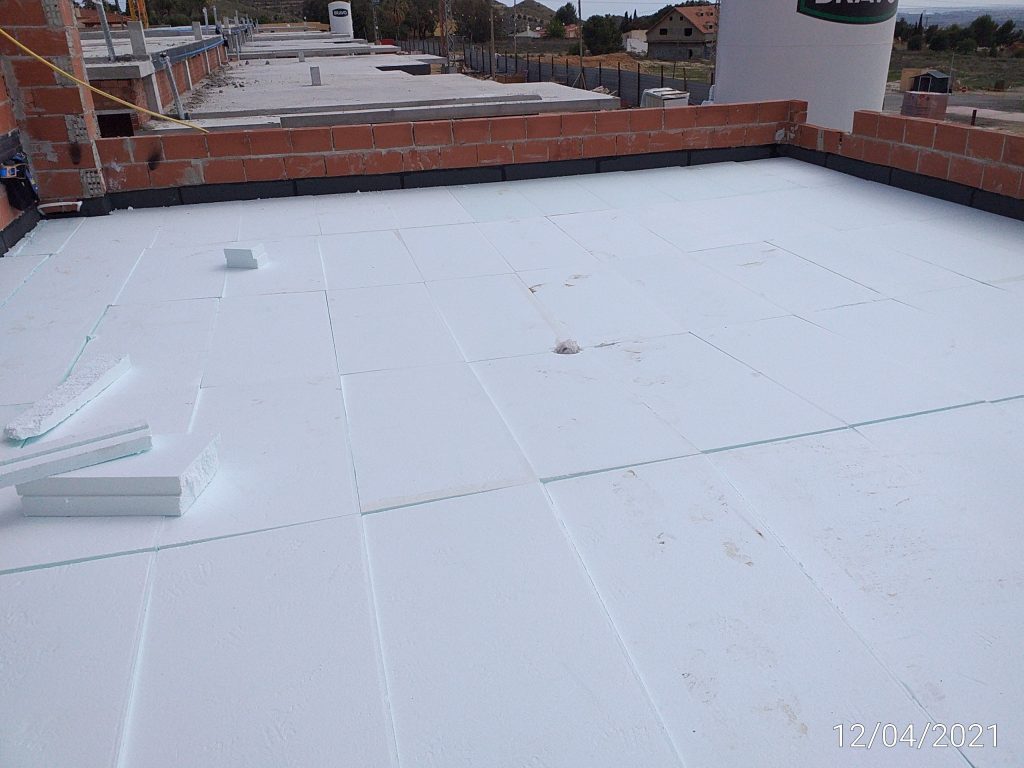

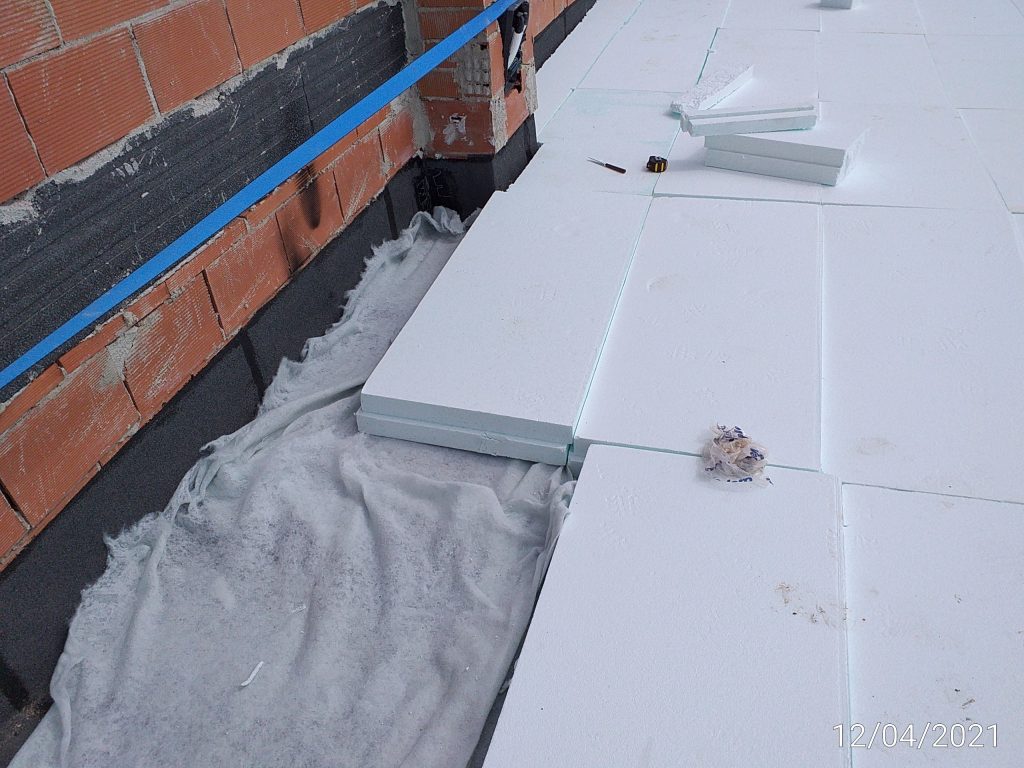

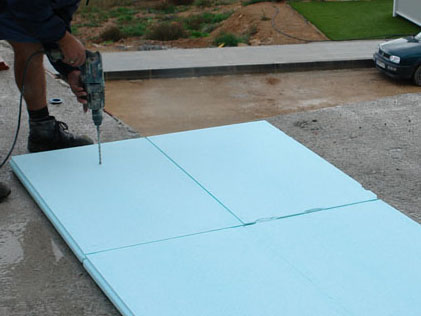

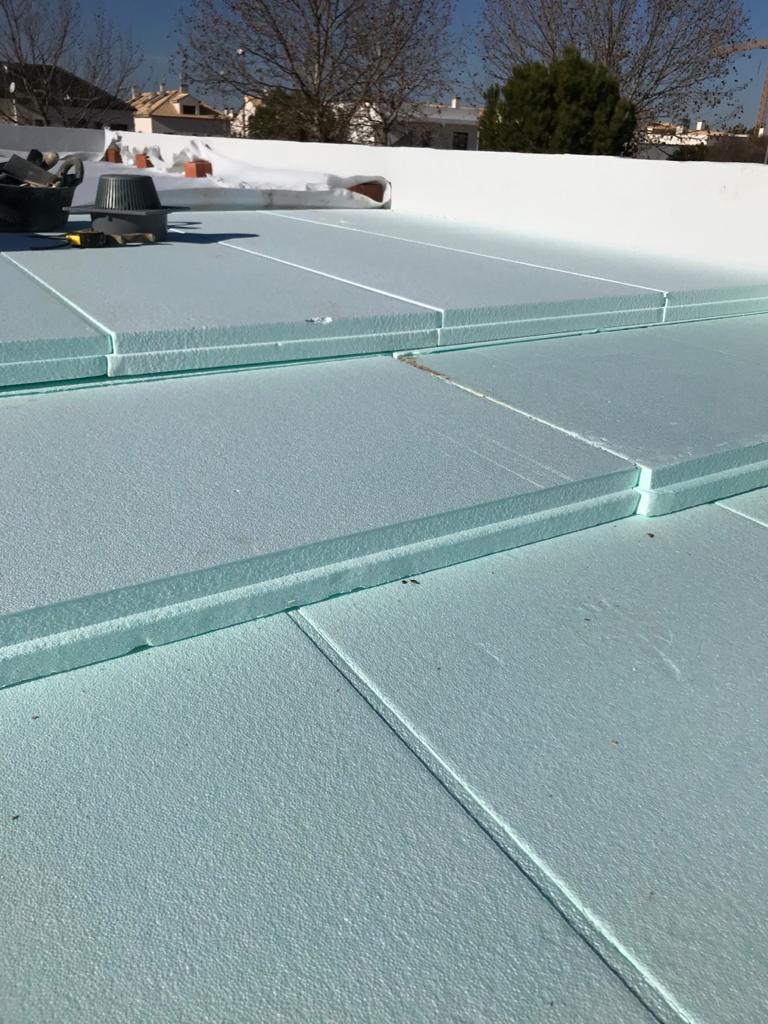

DONPOL Verde is a hydrophobic expanded polystyrene (EPS-h) panel for thermal insulation which comply with the technical specifications of the Spanish UNE-EN 13163 standard, in green and with a customised mechanised cut to facilitate placing and breakage of thermal bridges.

Thanks to its excellent thermal conductivity value of 0,032 W / mK, it allows to achieve greater thermal resistance with less thickness than conventional systems, enabling the Spanish CTE DB-HE requirements to be met by reducing the total thickness of the covers.

It can be manufactured in any thickness without losing thermal properties, that means, without its thermal conductivity value worsening, as it is stable in all its thickness.

Its high compression resistance, with a value of kPa 200, which is recommended according to UNE 92181 standard for use on flat walkable roofs and non-walkable gravel roofs, makes it an ideal product for these applications.

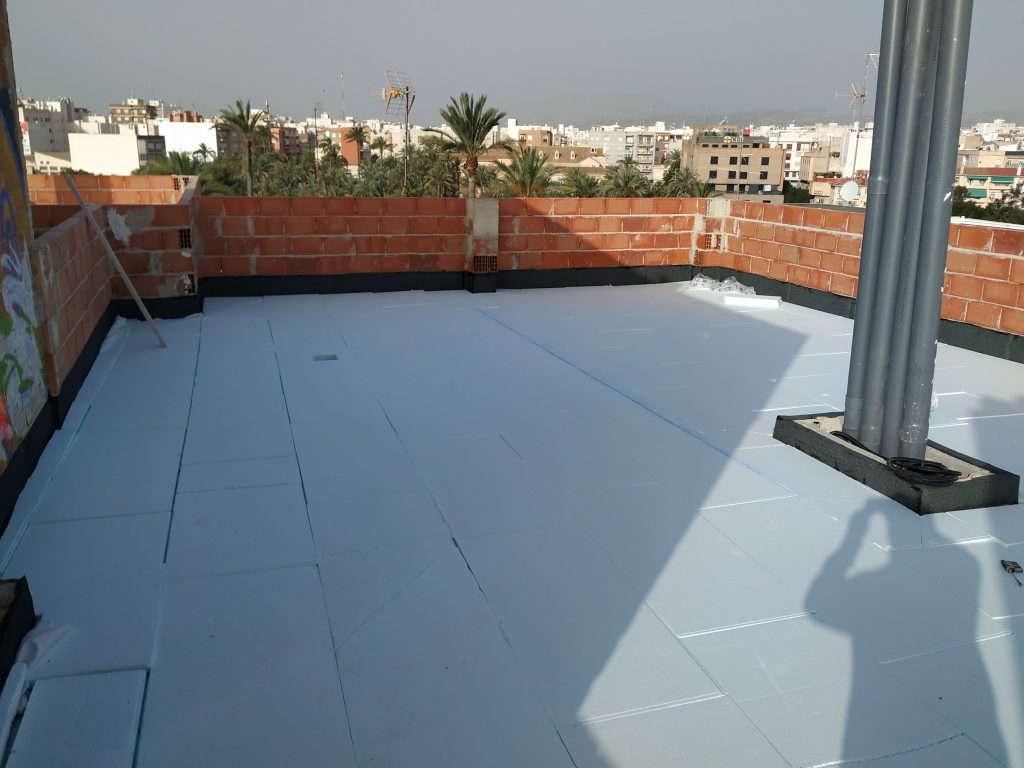

Since it is a hydrophobic material (absorbing water due to immersion ≤ 2% volume) it is apt for use in inverted roofs.

Construction details

Example 1

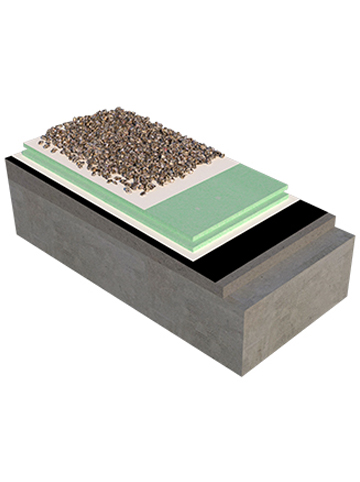

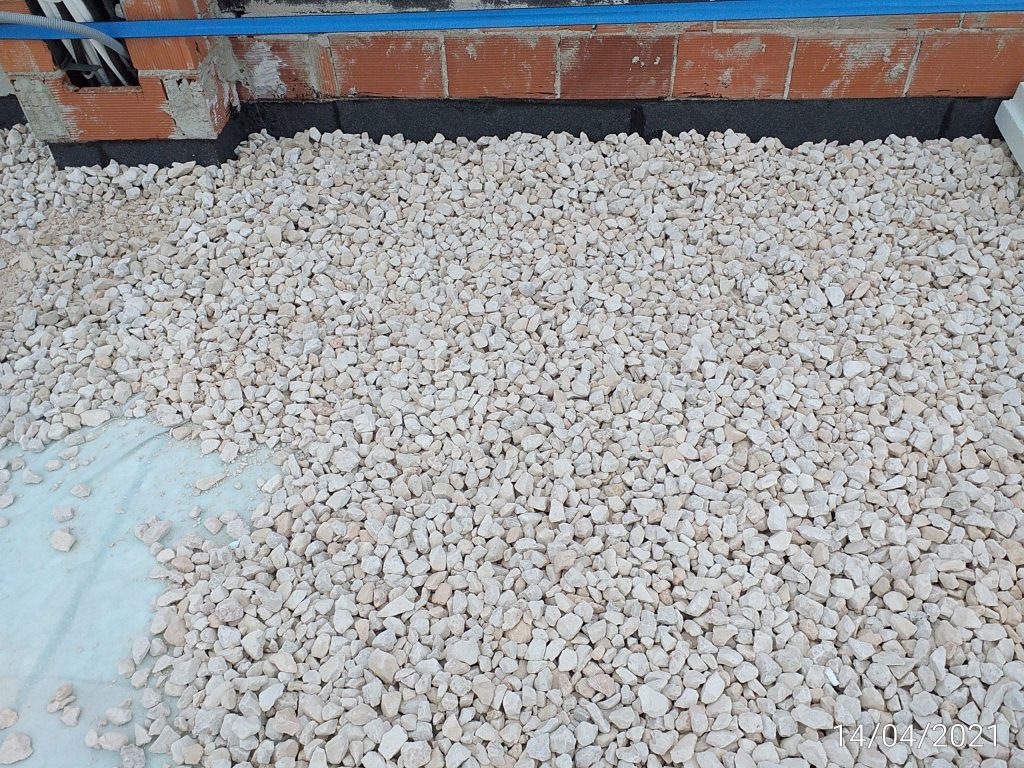

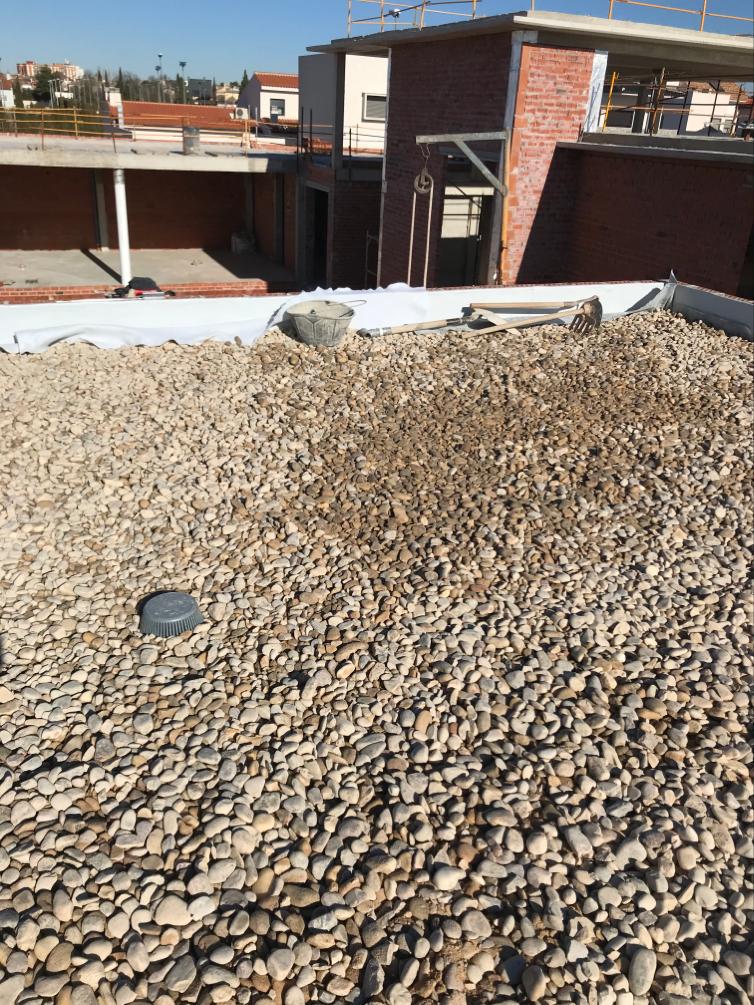

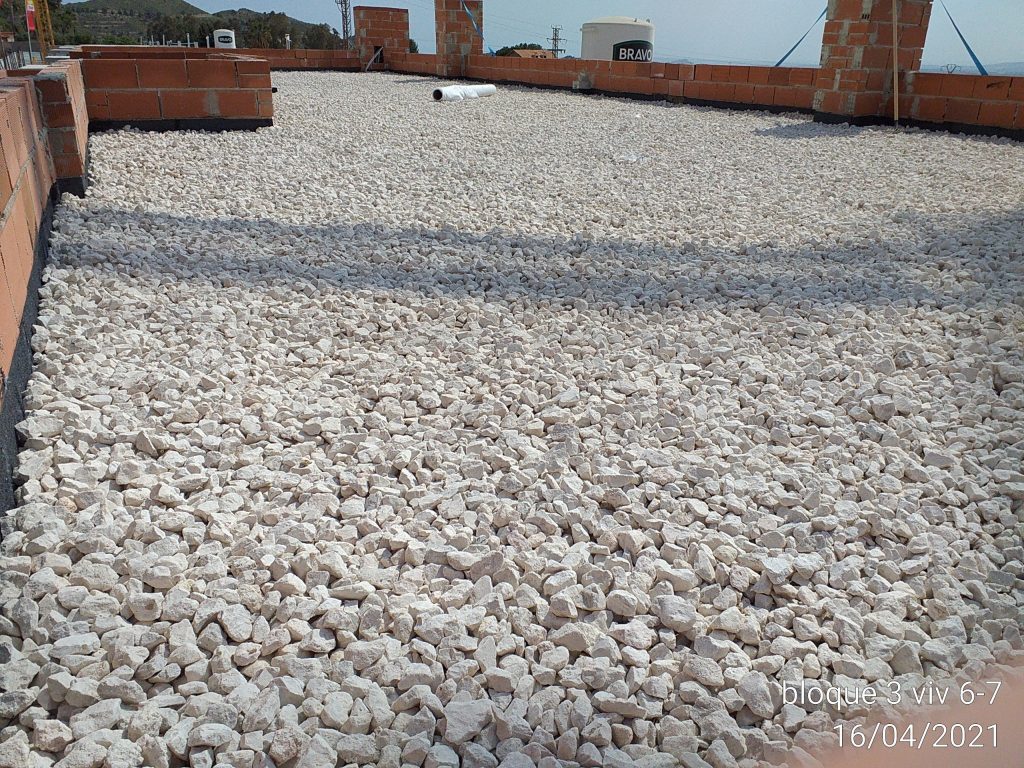

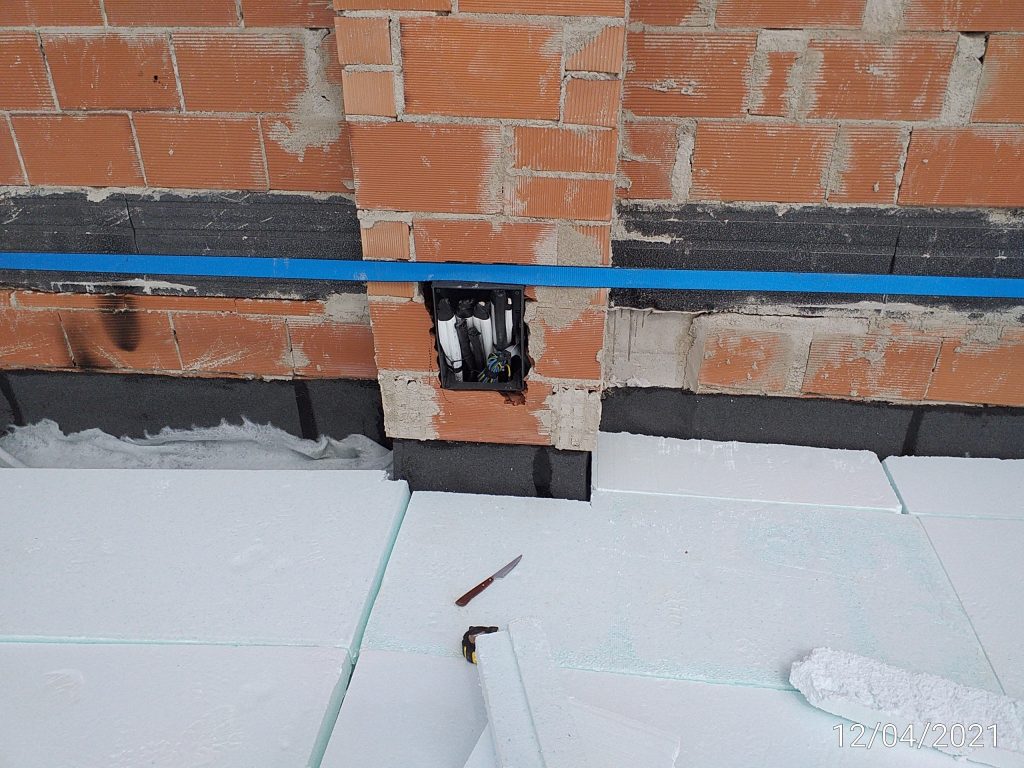

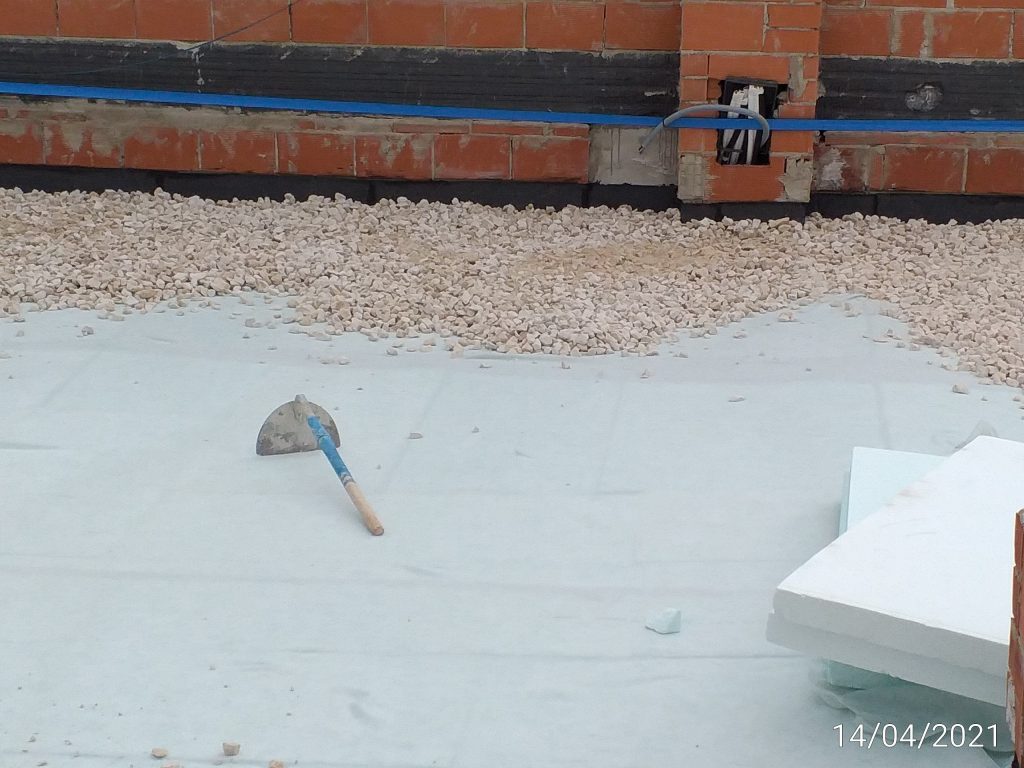

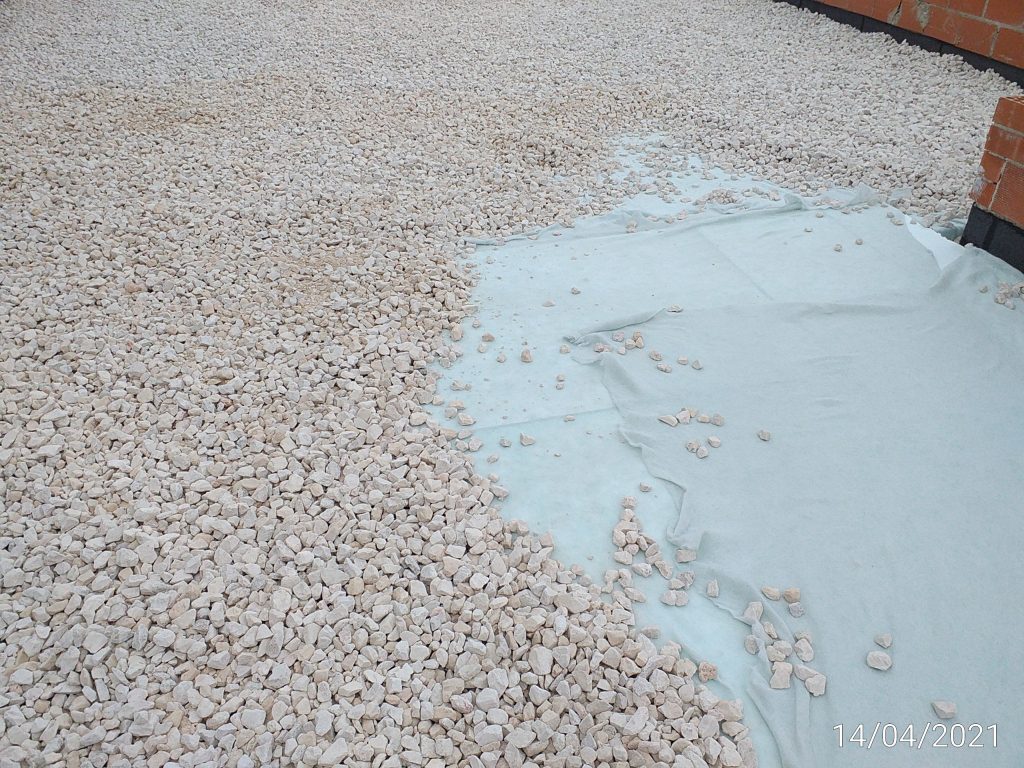

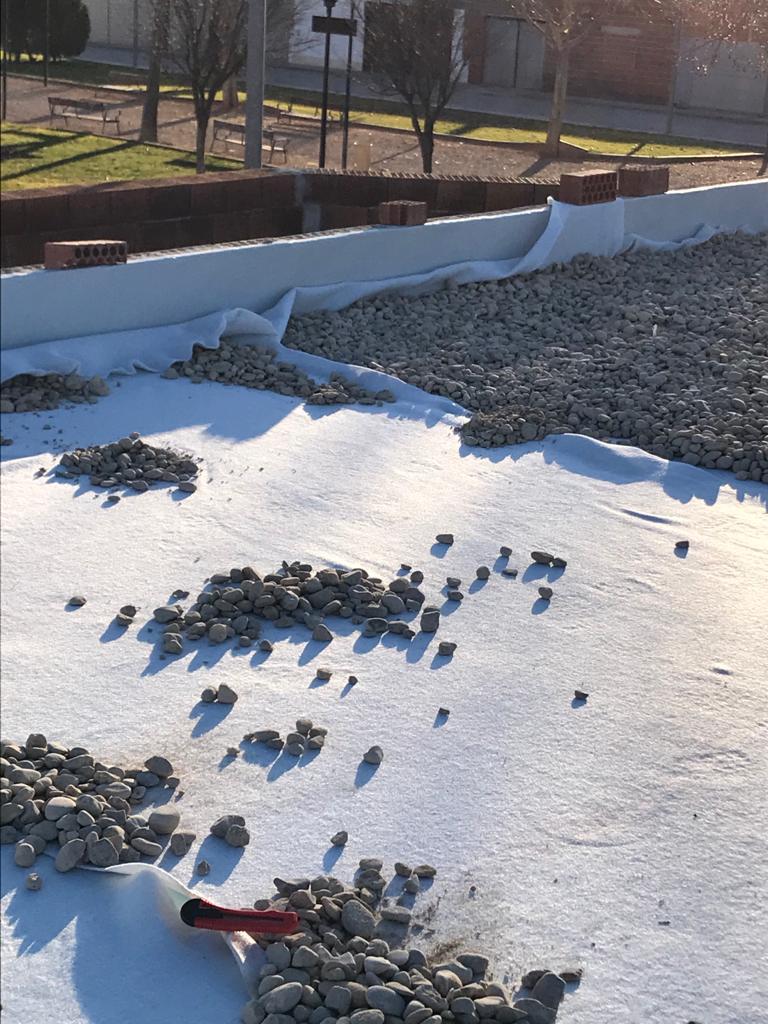

Application on non-transitable flat cover, non-ventilated, inverted type, with gravel protection layer.

SECTION

3D DETAIL

LEGEND

  1. Gravel
  2. Separating layer : geotextile
  3. Thermal insulation: DONPOL VERDE Hidrófobo
  4. Separating layer : geotextile
  5. Waterproof sheet
  6. Formation of slopes
  7. Reinforced concrete slab edge
Acoustic insulation – Compliance with CTE - DB HE Dec. 2019 version
Weather area Thickness "e"
(mm)
“U” thermal transmittance
of solution (W/m2K)
“U” thermal transmittance recommended
in accordance with schedule E - DB HE (Dec. 2019 version) (W/m2K)
α 50 0,46 0,50
A 60 0,40 0,44
B 80 0,32 0,33
C 120 0,23 0,23
D 130 0,21 0,22
E 150 0,19 0,19

Example 2

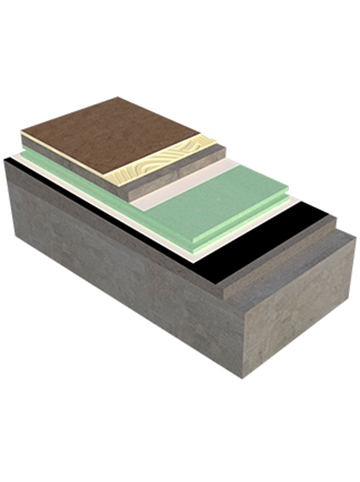

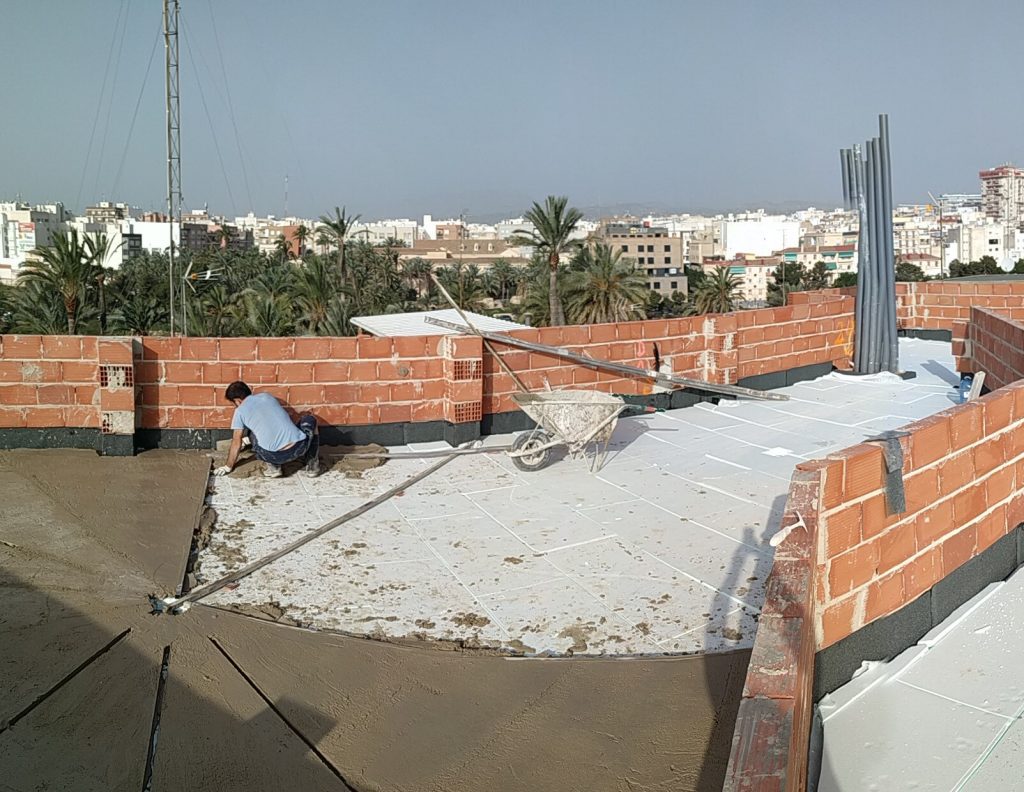

Application on transitable flat cover, non-ventilated, inverted type, with fixed flooring.

SECTION

3D DETAIL

LEGEND

  1. Floor
  2. Holding mortar
  3. Compression layer
  4. Separating layer : geotextile
  5. Thermal insulation: DONPOL VERDE Hidrófobo
  6. Separating layer : geotextile
  7. Waterproof sheet
  8. Formation of slopes
  9. Reinforced concrete slab edge
Acoustic insulation – Compliance with CTE - DB HE Dec. 2019 version
Weather area Thickness "e"
(mm)
“U” thermal transmittance
of solution (W/m2K)
“U” thermal transmittance recommended
in accordance with schedule E - DB HE (Dec. 2019 version) (W/m2K)
α 50 0,45 0,50
A 60 0,39 0,44
B 80 0,31 0,33
C 120 0,23 0,23
D 130 0,21 0,22
E 150 0,19 0,19
Recommended mechanical characteristics on transitable flat cover for pedestrian traffic
and non-transitable flat cover, inverted type, in accordance with UNE 92181-2017
Resistance to compression CS(10) Resistance to compression CS(10)
in accordance with UNE 92181 standard
200 200

DESCRIPTIVE REPORT

___ m² of rigid hydrophobic expanded polystyrene (EPS-h) foam panel, Donpol Verde “VALERO”, in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0.032 W/(mK), Euroclass E reaction to fire, EPS-h designation code ‐ EN 13163-L3-W3-T2-S5-P10-CS(10)200-BS250-TR120-DS(70,90)1-WL(T)2.

Prontuario of construction solutions
adapted with CTE DB-HE (Dec. 2019)


Example of construction detail
ROOF PREVIEW .PDF .DWG
(AutoCAD)
.BIB
(Cypetherm)
.BDC
(HULC)

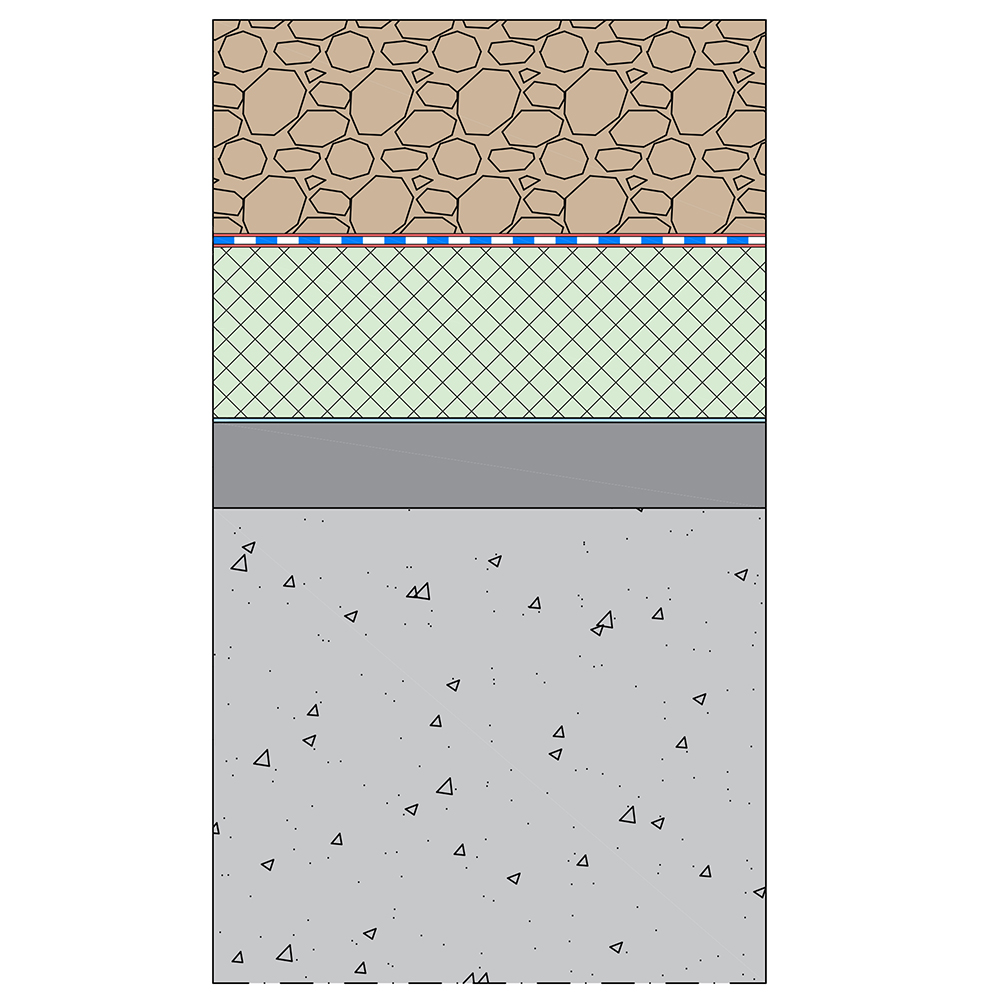

4.1.5_C5.2.i_DPVerde
Non-transitable inverted cover.
Not ventilated.
Gravel.

ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS

FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS

With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)

TECHNICAL INFORMATION

Thermal conductivity (λ): 0,032 W/mK
Compressive strength: ≥ 200 kPa
Water absorption during immersion: ≤ 2% volume
Thickness: From 30 mm
Measurements: 1330x600 mm
Contact us for other measurements
Cut:
For more information, contact us
