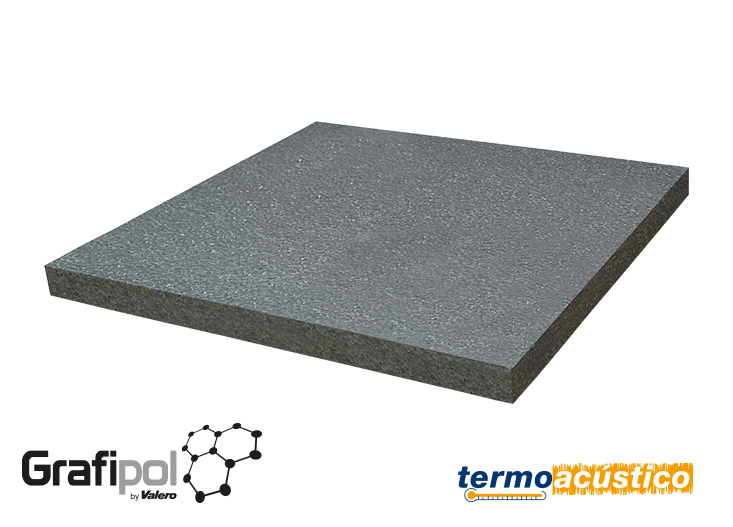

Grafipol TR-0 [Impact]

EEPS for floating floor

Grafipol TR-0 Impact is an elastic expanded polystyrene (EEPS) panel of different thickness with low thermal conductivity, complying with the Spanish technical specifications in the UNE-EN 13163 standard. It is made of our Grafipol TR-0 (insulation range subject to elasticity processes to improve acoustic features).

With impact noise reduction index value between 29 dB and 40 dB* (depending on thickness used), it is especially recommended for impact noise insulation of all types of floating floors, such as forges separating houses within a building.

Thanks to the constructive solution consisting of irons placed directly on the wrought and perimeter acoustic bands in encounters with the vertical elements, it is possible to desolidarize the masses of the welded and wrought, complying with the requirement set out in the Spanish Basic Document DB-HR Noise Protection, as amended in December 2019, for the application of floating floors.

(*) According to Acusttel laboratory tests with report number 05.241.CA.16 (10mm) and 05.191.CA.09 (25mm)

Construction detail

Floating application. Forged between houses.

SECTION

3D DETAIL

LEGEND

  1. Ceramic flooring
  2. Holding mortar
  3. Compression layer
  4. EEPS acoustic perimeter band: Grafipol TR-0 Tiras
  5. Separating layer: polyethylene film
  6. Acoustic mats: GRAFIPOL TR-0 Impact
  7. Reinforced concrete floor
  8. Interior coating: plaster
Acoustic insulation - Compliance with CTE - DB HR 2016
Thickness "e"
(mm)
Noise impact reduction indicator
“ΔLW" in accordance with test in UNE EN ISO 140-7 standard (dB)
Noise impact reduction indicator
"ΔLW" (dB) demanded by DB HR 2016 (dB)
10, 15 y 20 29 (1) 13 (3)
≥ 25 40 (2)

(1) According to Acusttel laboratory test with report number 05.241.CA.16
(2) According to Acusttel laboratory test with report number 05.191.CA.09
(3) Difference between the weighted average of sound pressure of floor shocks of 78 dB in accordance with UNE EN ISO 717-2 standard, and global pressure level of shock impacts in accordance with section 2.1.2 of CTE – DB HR 2016, of 65 dB.

DESCRIPTIVE REPORT

___ m² of rigid expanded polystyrene (EPS) foam panel, Grafipol TR-0 Impact «VALERO», in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0.033 W/(mK), Euroclass E reaction to fire, EPS designation code ‐ EEPS-EN 13163-L3-W3-T2-S5-P10-BS50-DS(N)2-SD15, reducing the global pressure of noise impact levels by __ dB.

Prontuario of construction solutions
adapted with CTE DB-HE (Dec. 2019)

ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS

FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS

With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)

TECHNICAL INFORMATION

Thermal conductivity (λ): 0,033 W/mK
Dynamic rigidity: < 15 MN/mm²
Insulation from impact noise (ΔLw): 10-15-20 mm = 29 dB
≥ 25 mm = 40 dB
Compression resistance: ≥ 30 kPa
Thickness: From 10 mm
Standard length: 1000 mm
Standard width: 1000 mm
Contact us for other measurements
Cut:
For more information, contact us
