Grafipol TR-SATE

External thermal insulation

Grafipol TR-SATE is an expanded polystyrene (EPS) panel with low thermal conductivity, complying with the Spanish technical specifications of the UNE-EN 13163 standard, whose specific raw material increases its thermal insulation power to the same density of conventional EPS.

It is subject to a previous stabilisation process to ensure greater dimensional stability, preventing potential breaks, creaks and loosening in situations of brusque temperature changes.

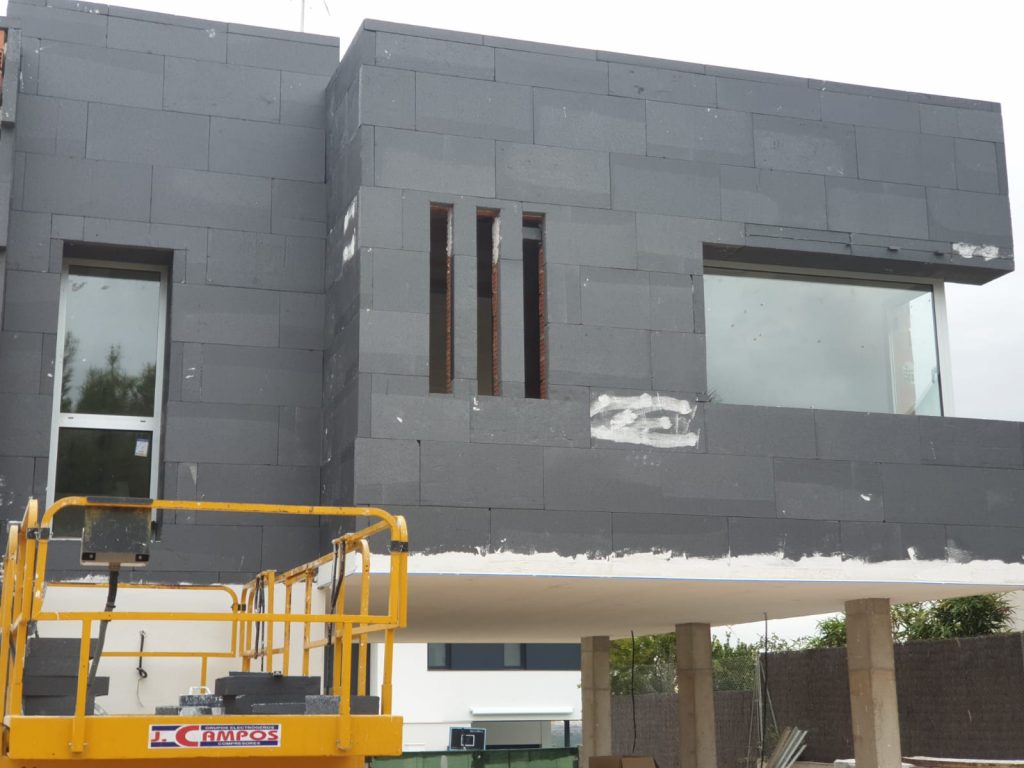

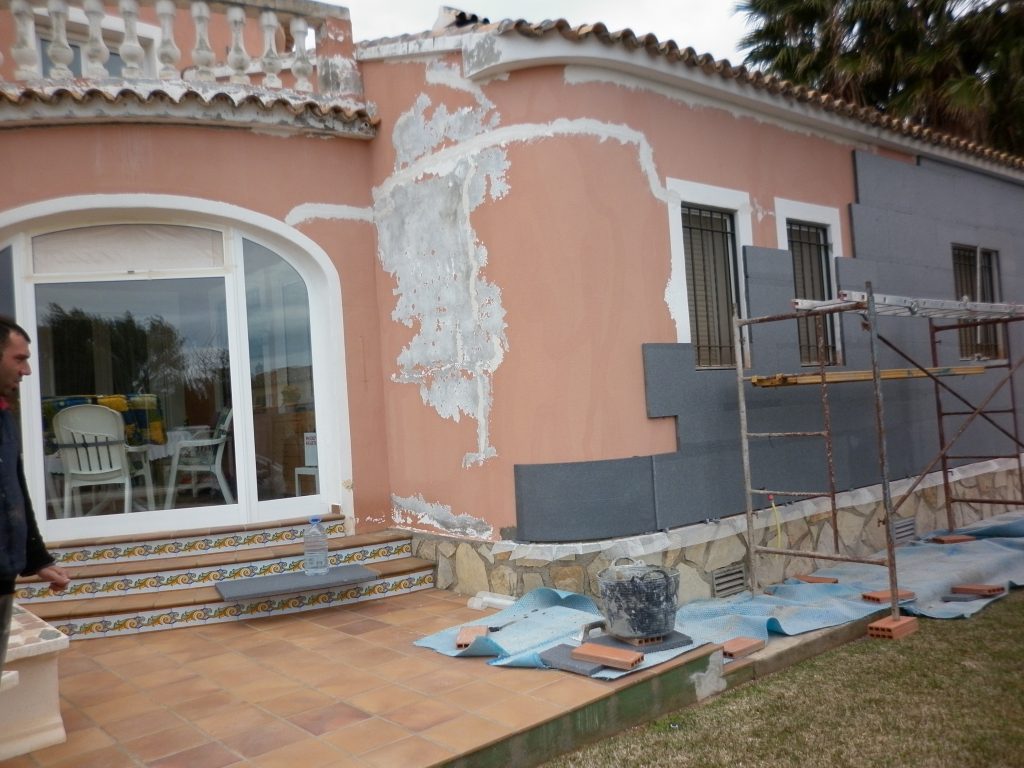

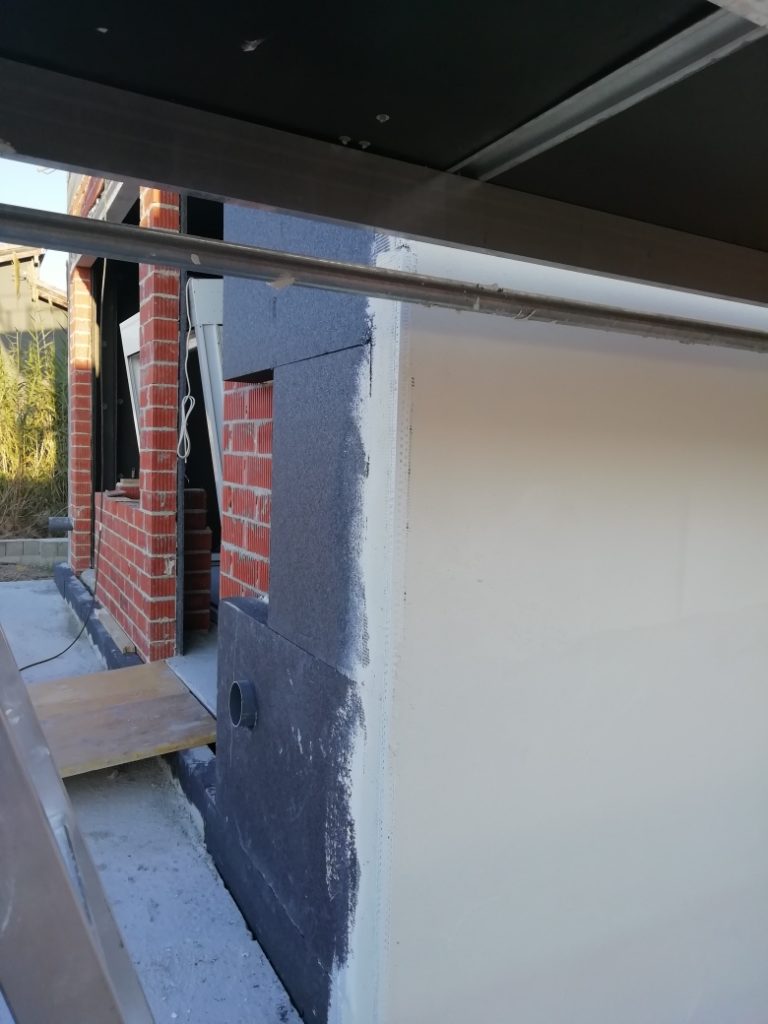

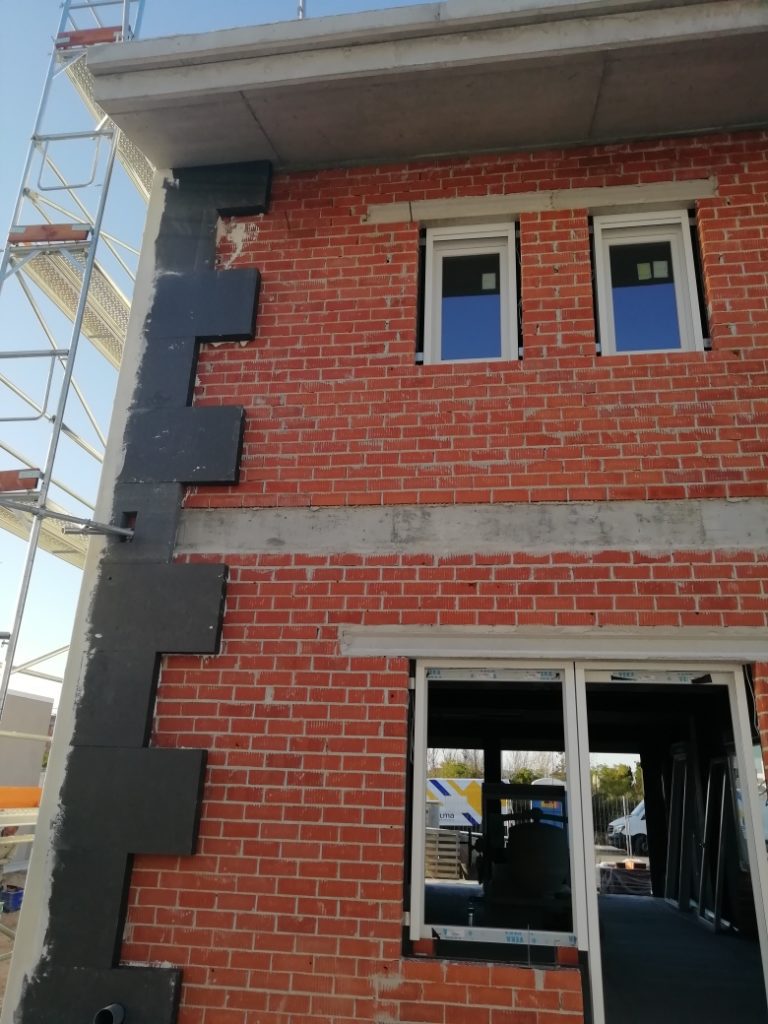

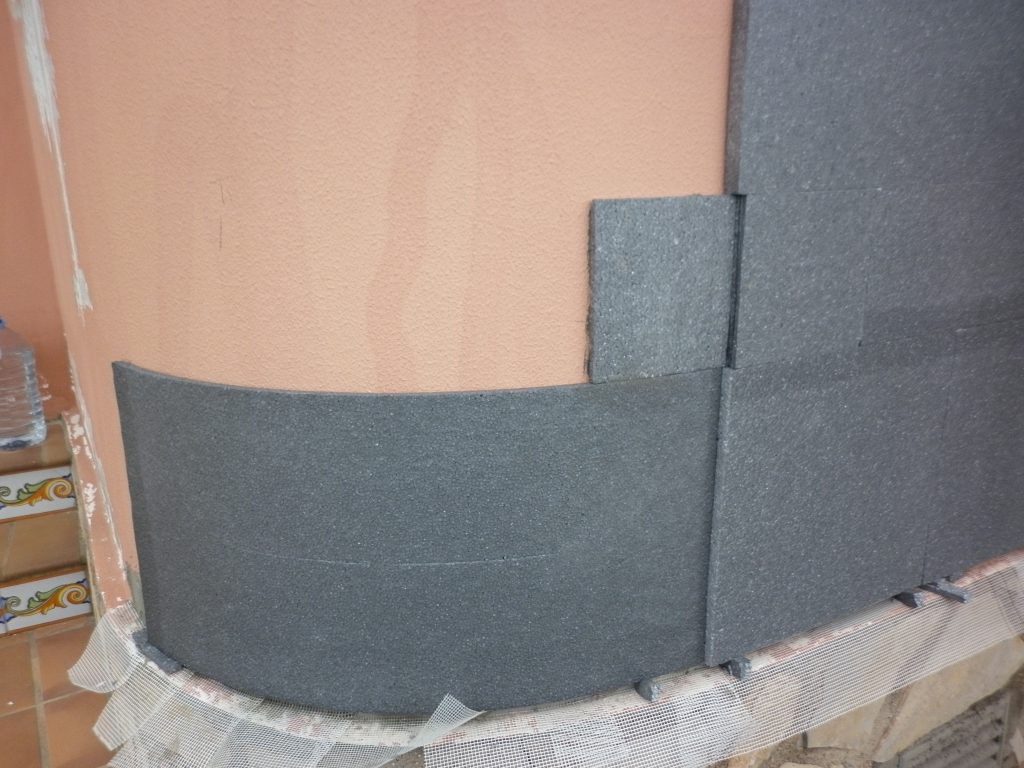

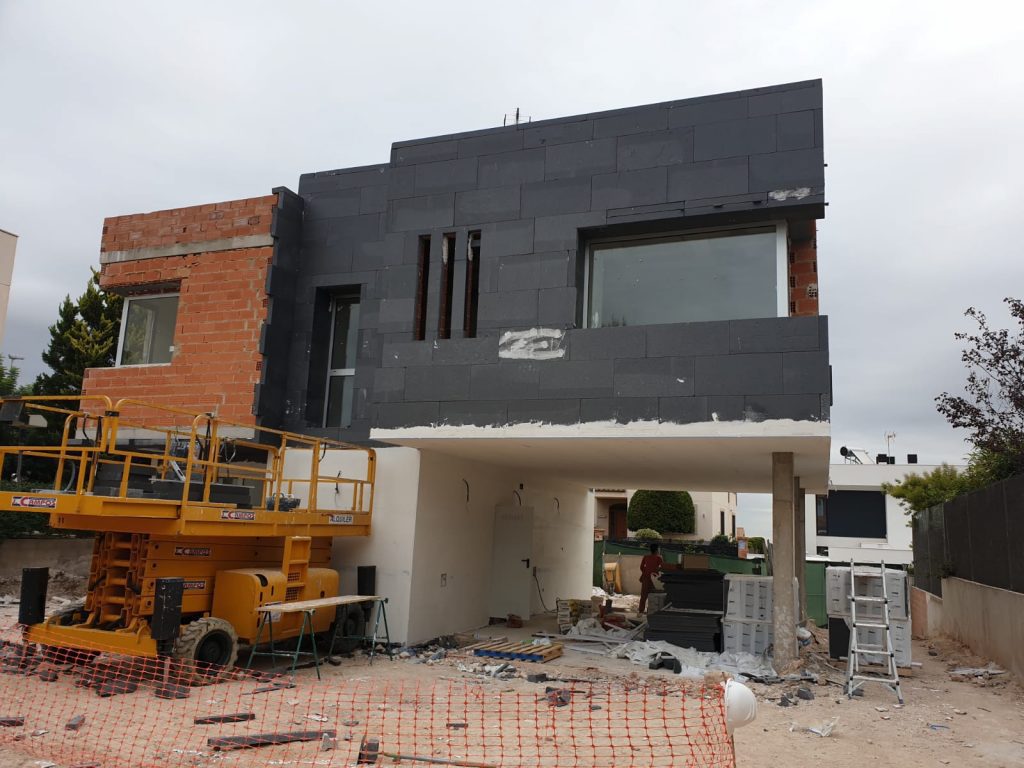

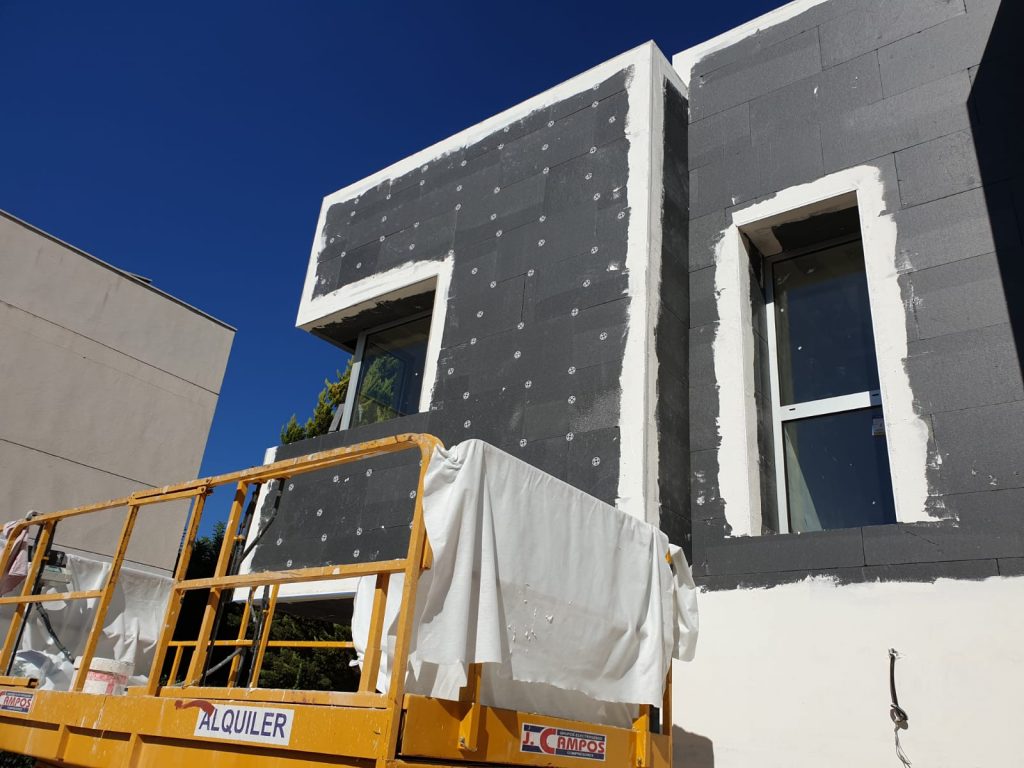

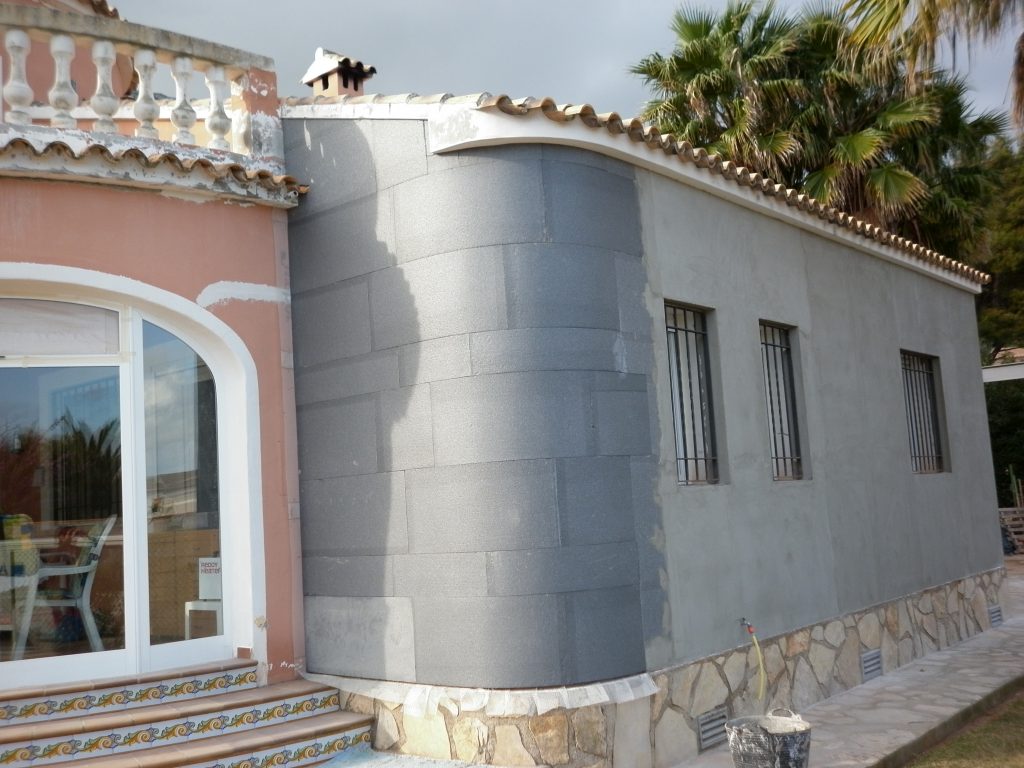

With a thermal conductivity of 0,031 W/mk, and its previous stabilisation process, it is specially recommended for use in exterior thermal insulation systems (SATE-ETICS).

It can be manufactured in any thickness without losing thermal properties, that means, without its thermal conductivity value worsening, as it is stable in all its thickness.

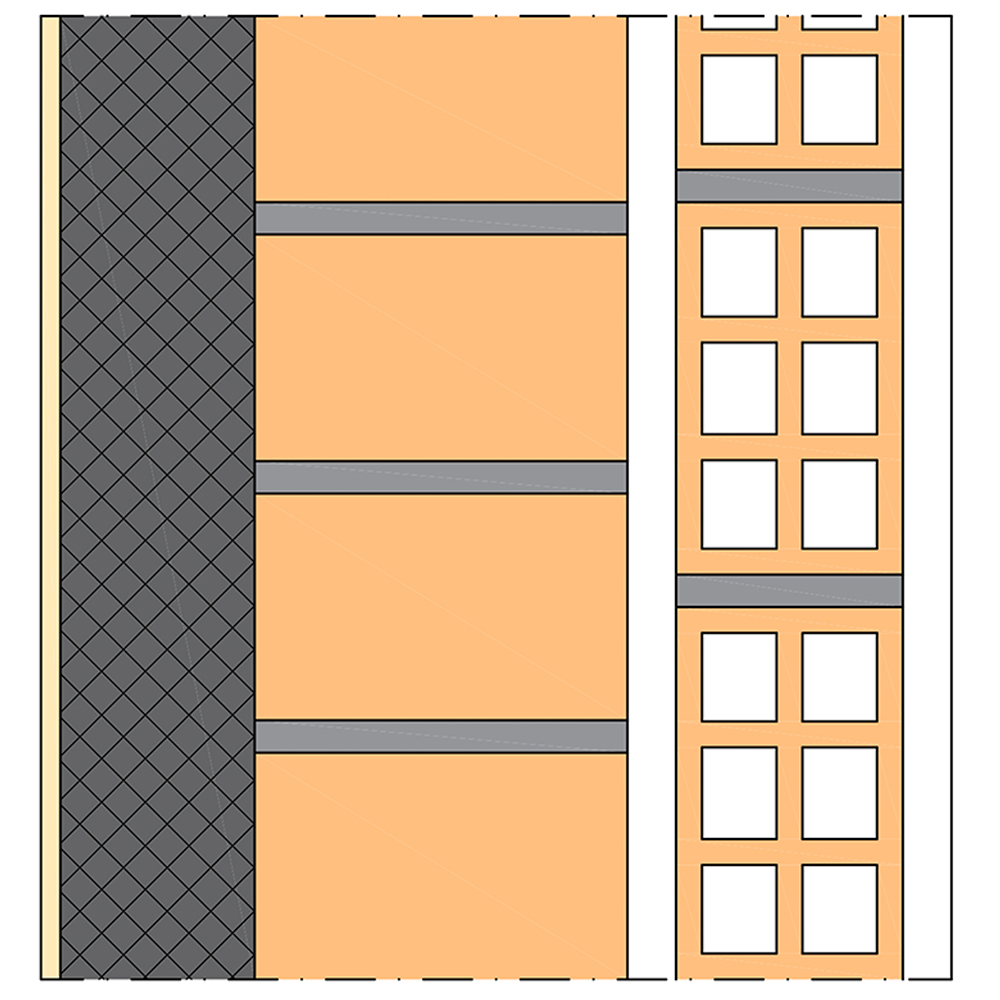

Construction detail

Example of application on sealing of ceramic main sheet of 1/2 feet, continuous coating, no air chamber, with exterior insulation

SECTION

3D DETAIL

LEGEND

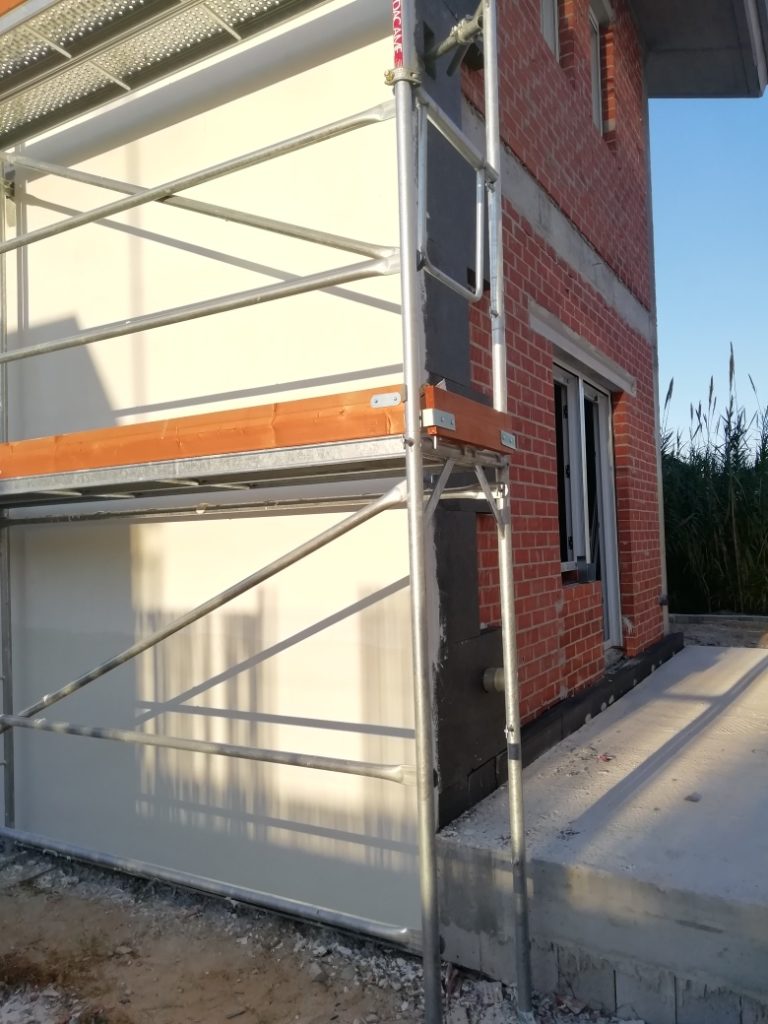

  1. Continuous exterior coating for SATE system: Base layer of more flexible reinforced mortar with anti-alkaline fibreglass mesh; Acrylic primer that is waterproof and permeable to steam; finishing with acrylic mortar layer
  2. Thermal insulation: GRAFIPOL TR-SATE (λ = 0,031 W/mK)
  3. Main sheet (brick wall 1/2 used as coating)
  4. Working chamber
  5. Ceramic lining : LH7 partition
  6. Interior coating: plaster
Thermal insulation - Compliance with CTE - DB HE Dec. 2019 version
Weather area Thickness "e"
(mm)
“U” thermal transmittance
of solution (W/m2K)
“U” thermal transmittance recommended
in accordance with schedule E -DB HE (Dec. 2019 version) (W/m2K)
α 40 0,49 0,56
A 40 0,49 0,50
B 60 0,37 0,38
C 90 0,28 0,29
D 100 0,25 0,27
E 110 0,23 0,23
Acoustic insulation - Compliance with CTE - DB HE 2016
Insulation of "RA" airborne noise
solution (dBA)
Insulation of "RA" airborne noise demanded
in accordance with DB HR 2016 in façades (dBA)
53 (1) 30 ≥ RA ≥ 47 (2)

(1) Value corresponding to a constructive solution with a double brick sheet and Grafipol insulation, according to an on-site test carried out by the Acusttel laboratory, nº 19.0211.CA.0019, with alighter outer sheet, therefore, more unfavorable for insulation acoustic.
(2) Maximum and minimum values required in table 2.1 of the DB HR-4, depending on the use of the building and the noise index day of the environment.

DESCRIPTIVE REPORT

___ m² of rigid expanded polystyrene (EPS) foam panel, Grafipol TR-SATE SE «VALERO», in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0.031 W/(mK), Euroclass E reaction to fire, EPS designation code ‐ EN 13163 – L(2) – W(2) – T(1) – S(2) – P(3) – TR150  – BS150 – DS(N)2 – DS(70,90)1.

Prontuario of construction solutions
adapted with CTE DB-HE (Dec. 2019)


Example of construction detail
SATE-ETICS  PREVIEW .PDF .DWG
(AutoCAD)
.BIB
(Cypetherm)
.BDC
(HULC)
4.2.4_F4.1.c_TRSATE
Continuous clothing. With work camera. External insulation

ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS

FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS

With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)

TECHNICAL INFORMATION

Thermal conductivity (λ) : 0,031 W/mK
Thickness(1): From 20 mm
Standard lengths: 1000 mm
Standard width: 500 and 600 mm
(1) Cut to size in multiples of 5 mm
Contact us for other measurements
Cut:
For more information, contact us
