Roofs

Insulation under slab

Grafipol (TR-32, TR-31, TR-30 y TR-29) is an expanded polystyrene (EPS) panel of low thermal conductivity, complying with the Spanish technical specifications of the UNE-EN 13163 standard, whose specific raw material increases its thermal insulation power to the same density of conventional EPS.

With a thermal conductivity from 0,032 W/mK to 0,029 W/mK, this material is specially recommended for slab concrete floor in contact with the outside or in contact with non-habitable spaces where the thermal insulation requirement is a priority. Due to its excellent features and specific design, it enables compliance with standard requirements regarding energy savings as set in the Spanish CTE DB-HE with minimum thickness and a simple installation.

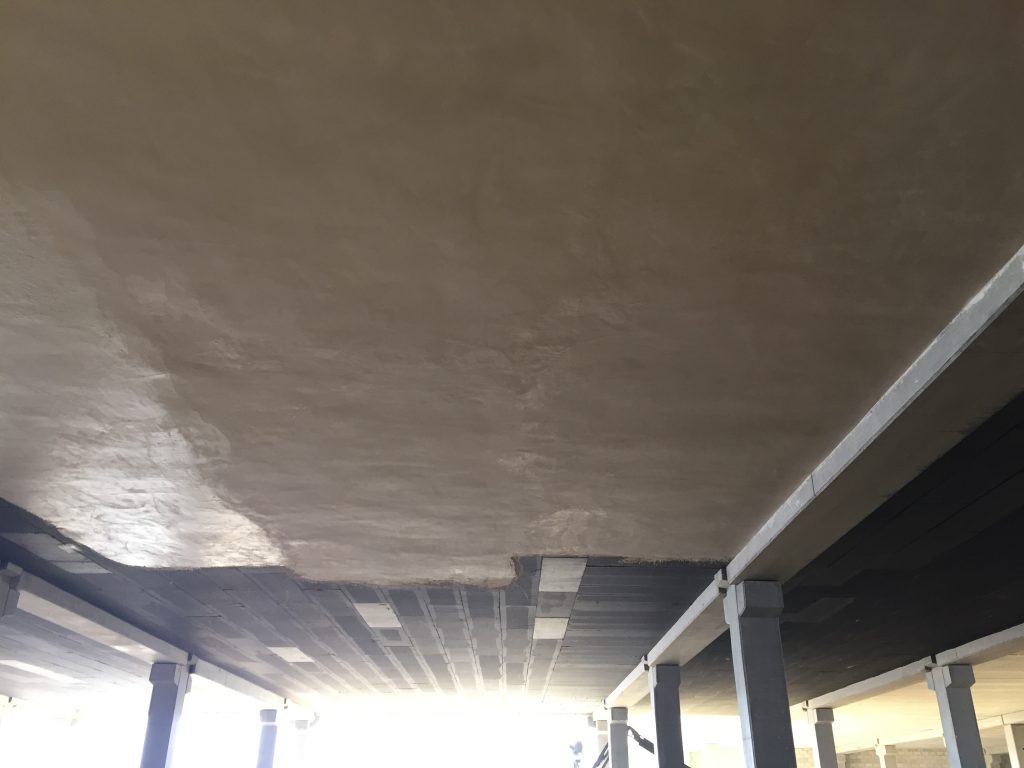

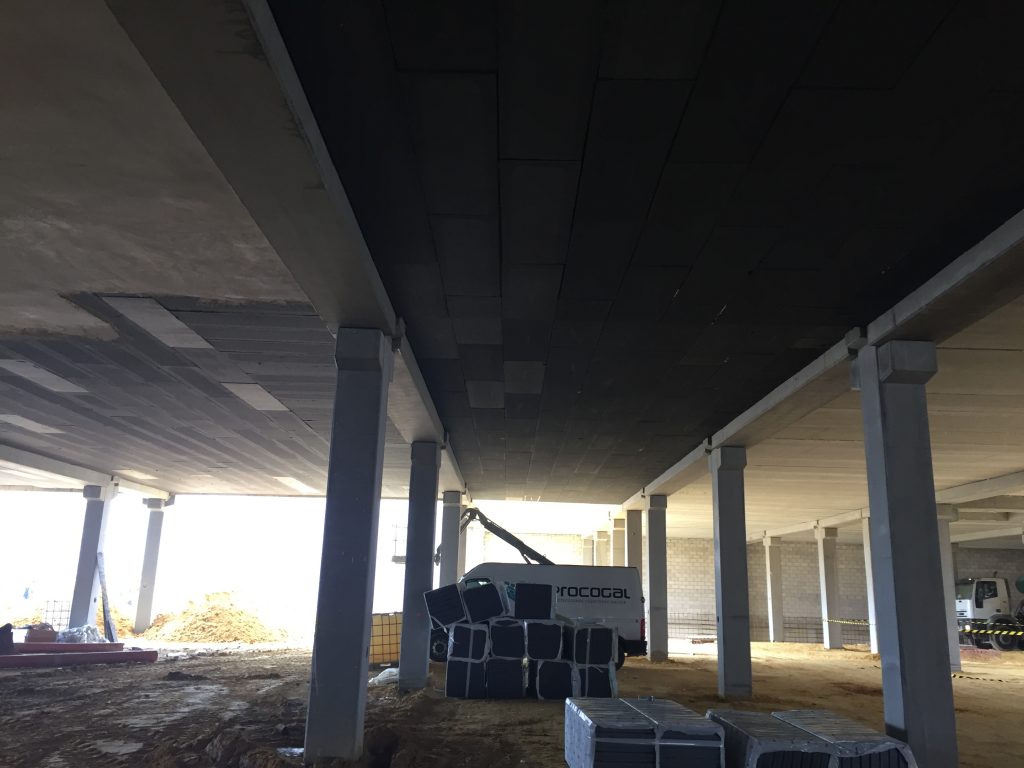

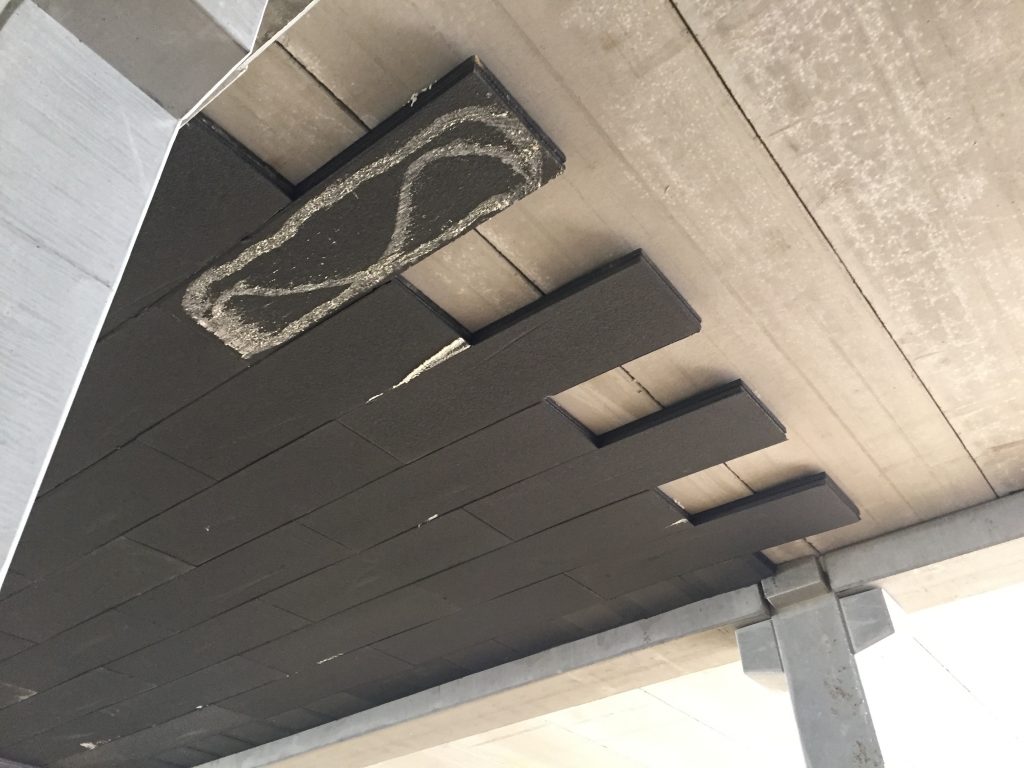

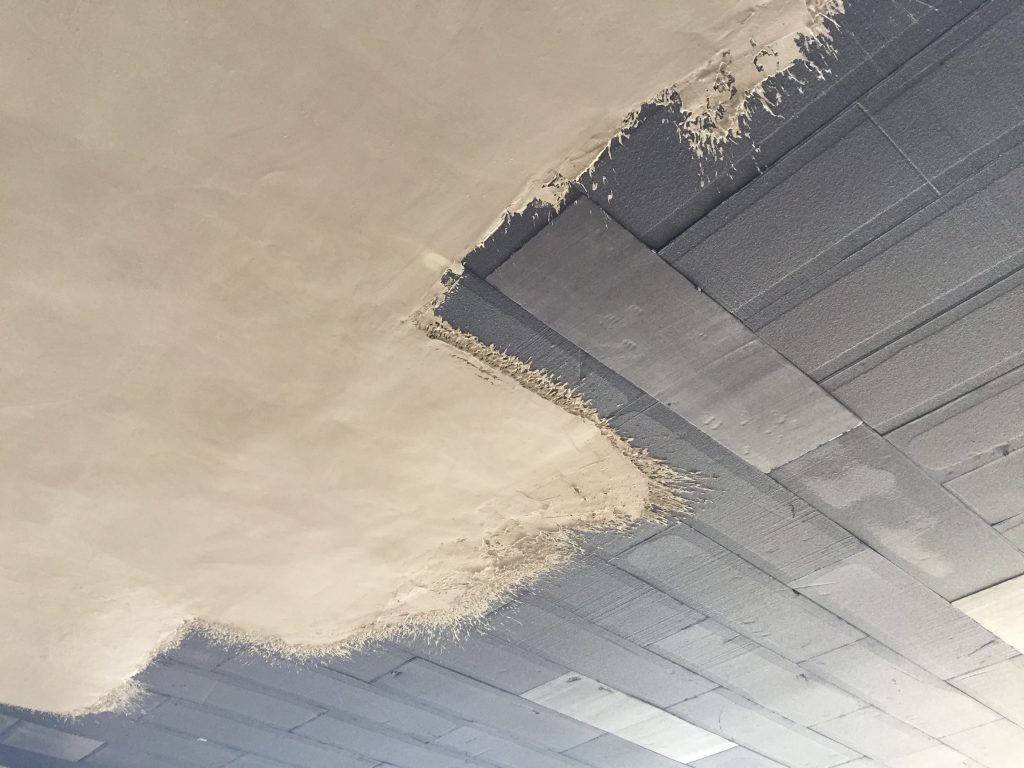

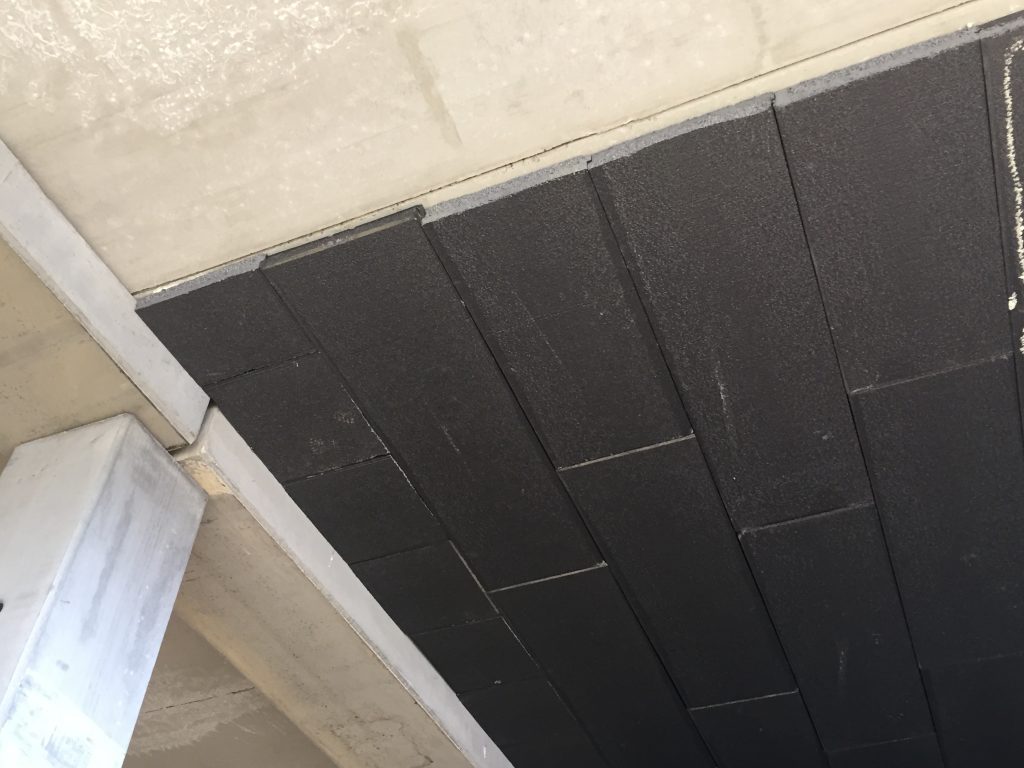

The product characteristics, its low weight, half-lap joint machining and its great adhesion with adhesives, both cement-based and polyurethane, allow an exceptional fixation to the support, achieving a uniform surface without linear thermal bridges (in joints between pieces) and point thermal bridges (in mechanical fixings).

It can be manufactured in any thickness without losing thermal properties, that means, without its thermal conductivity value worsening, as it is stable in all its thickness.

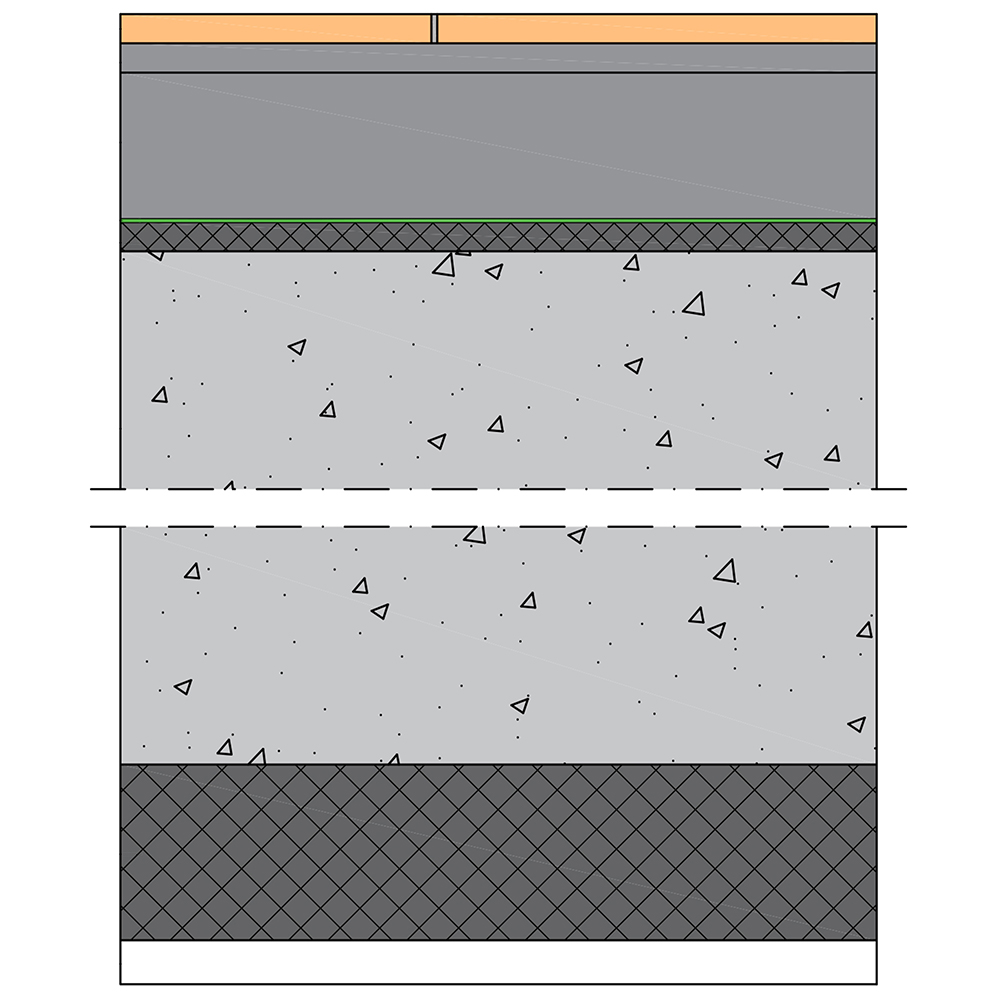

Construction detail

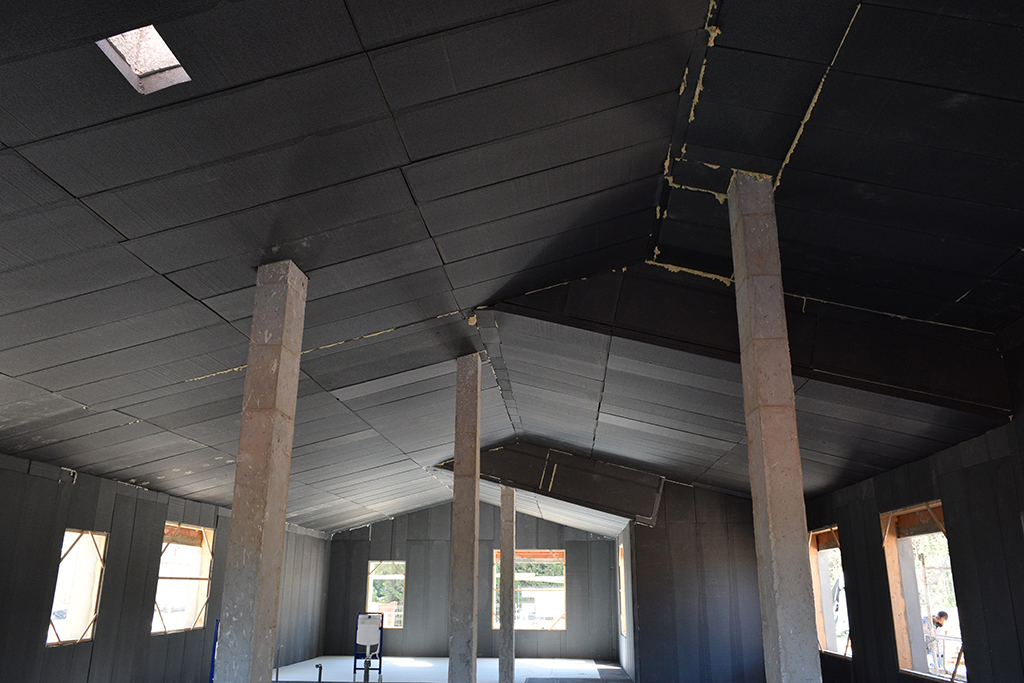

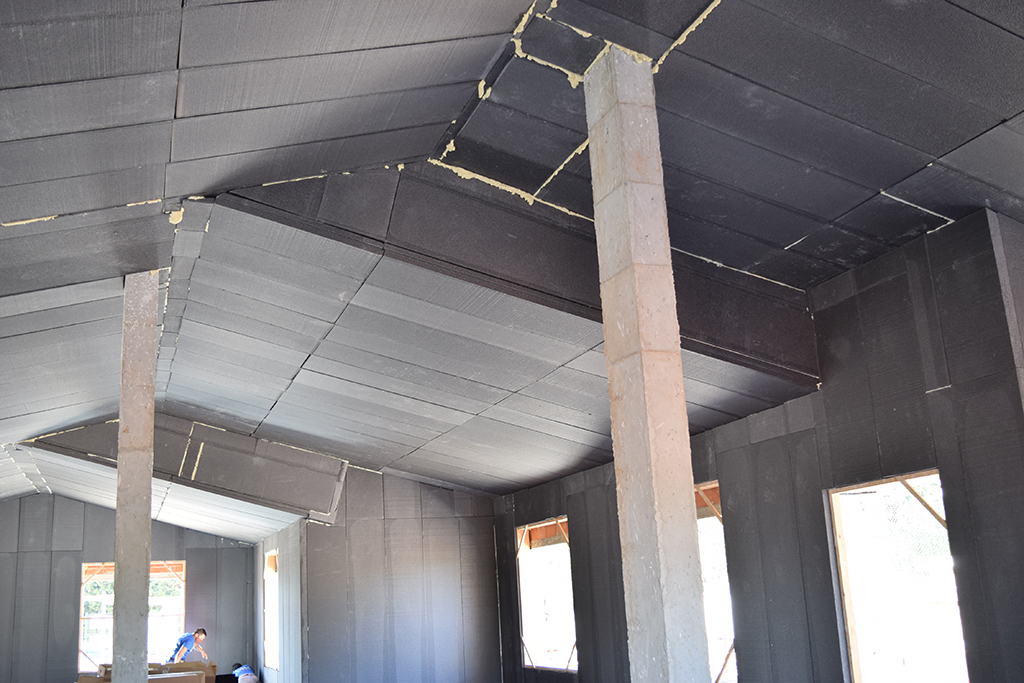

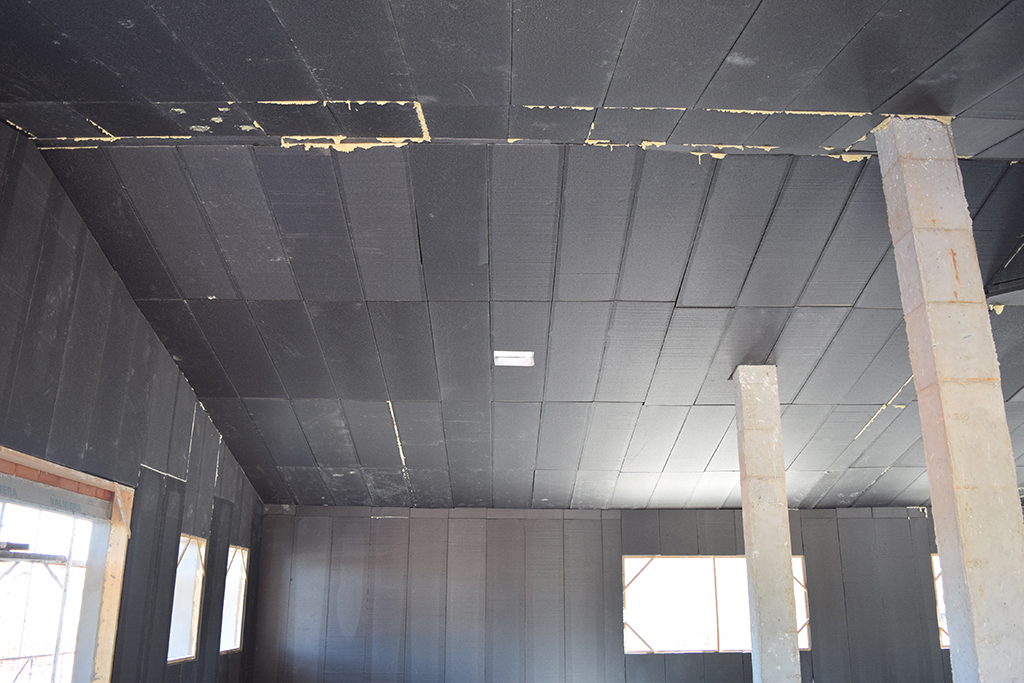

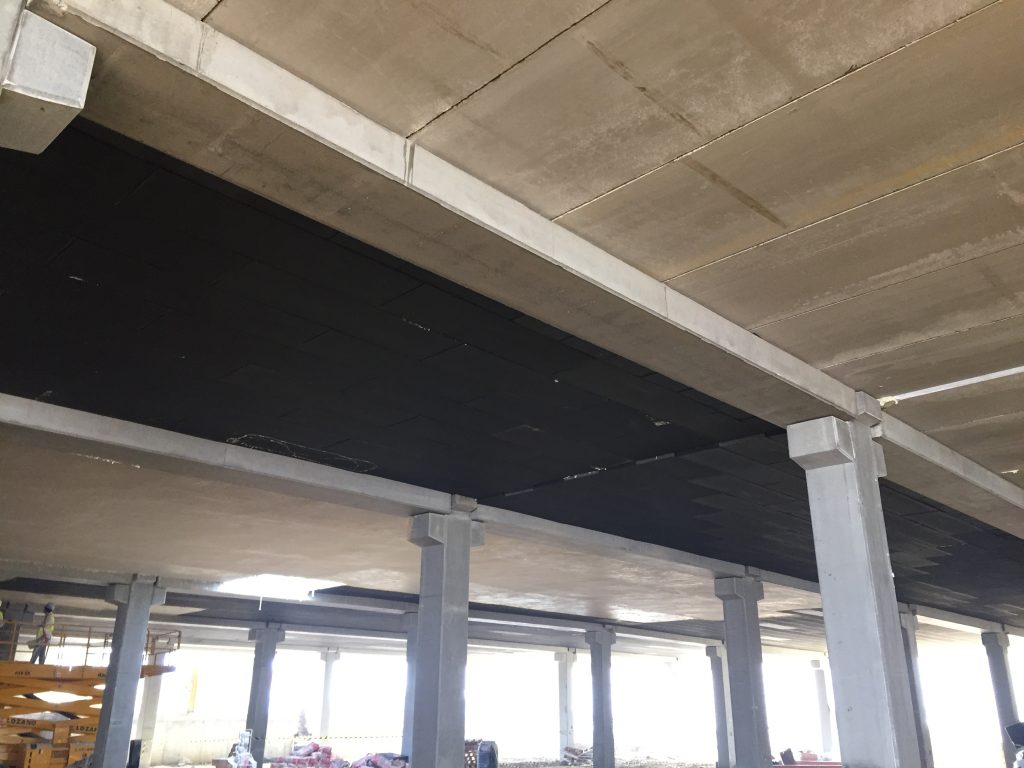

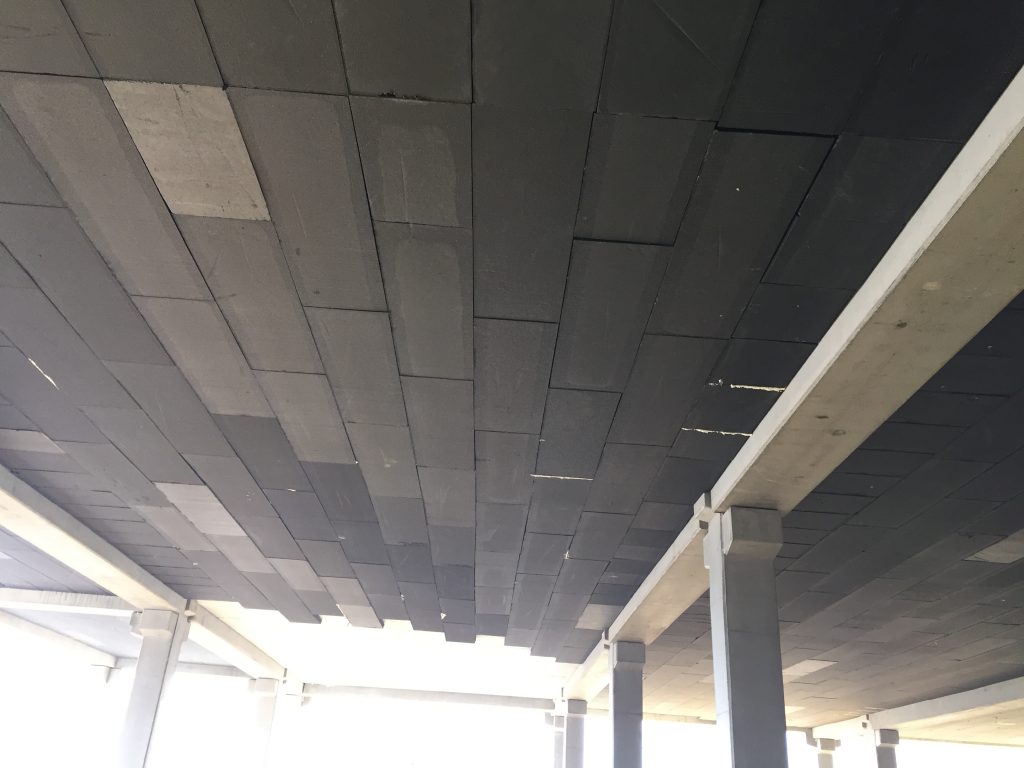

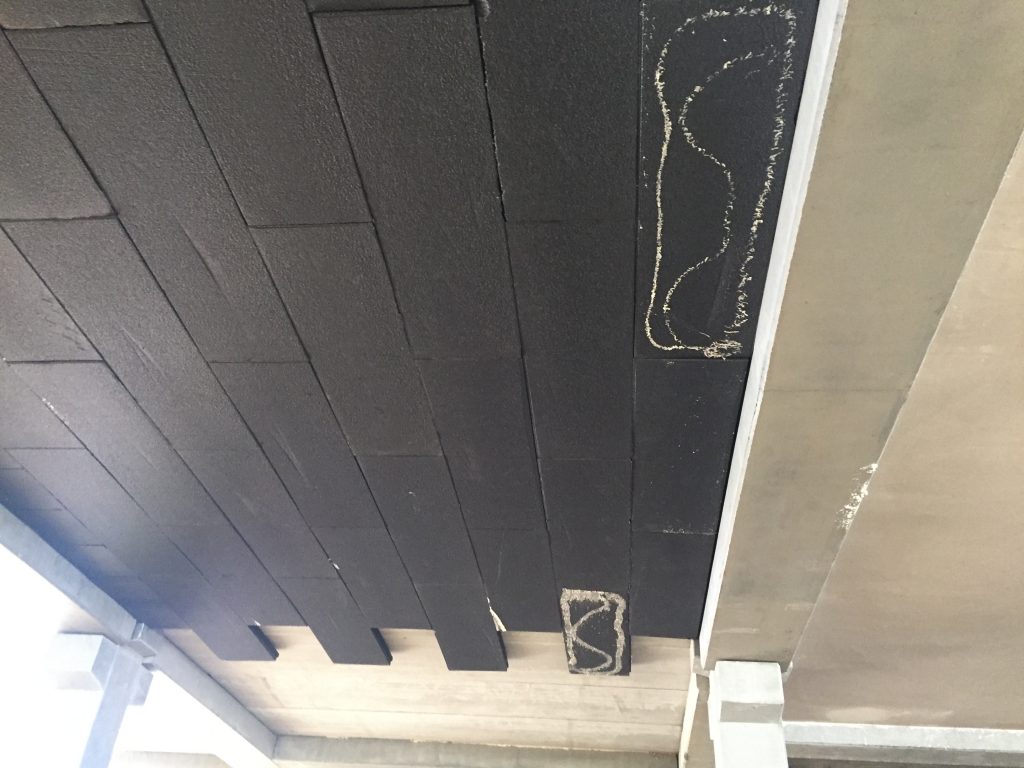

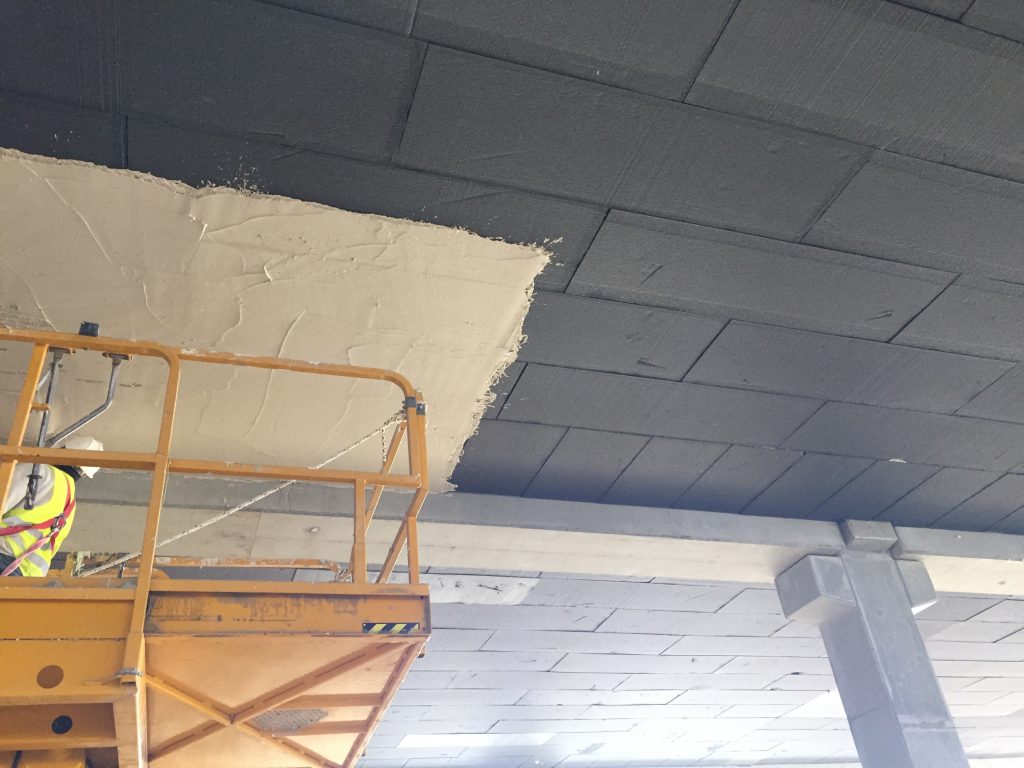

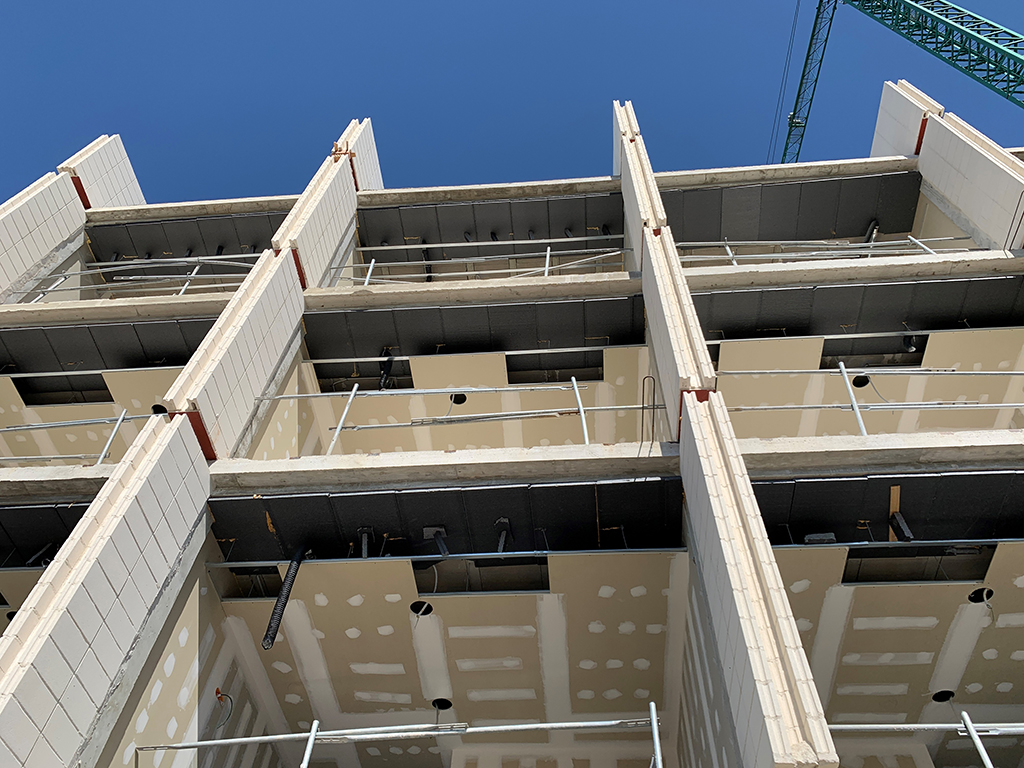

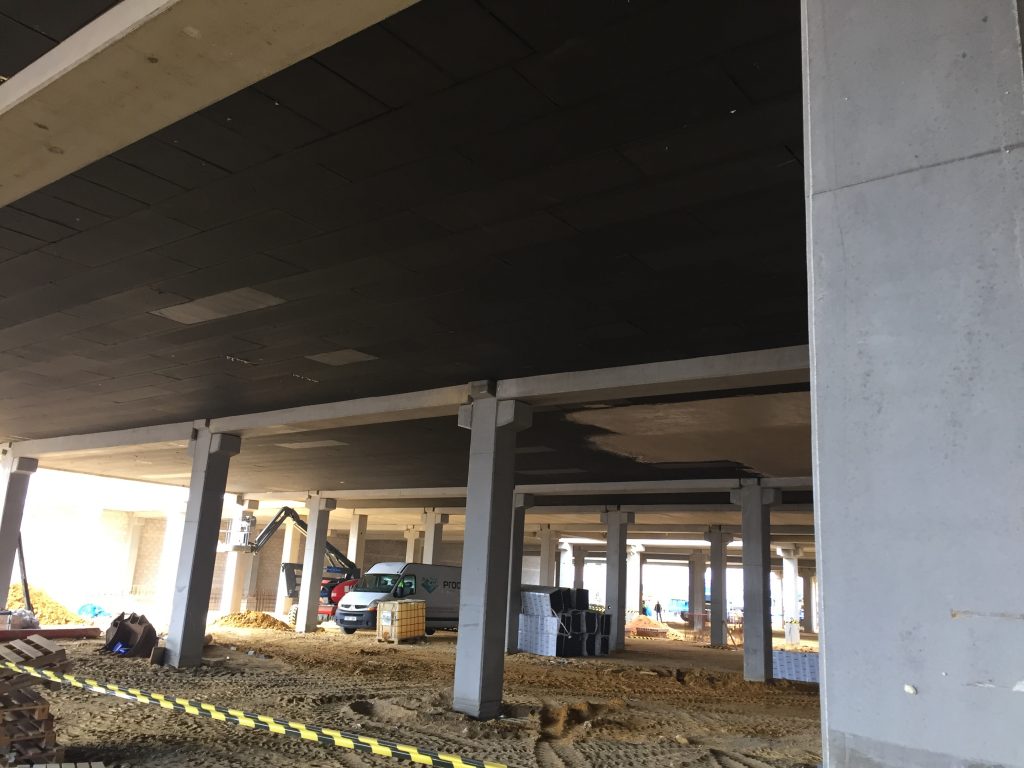

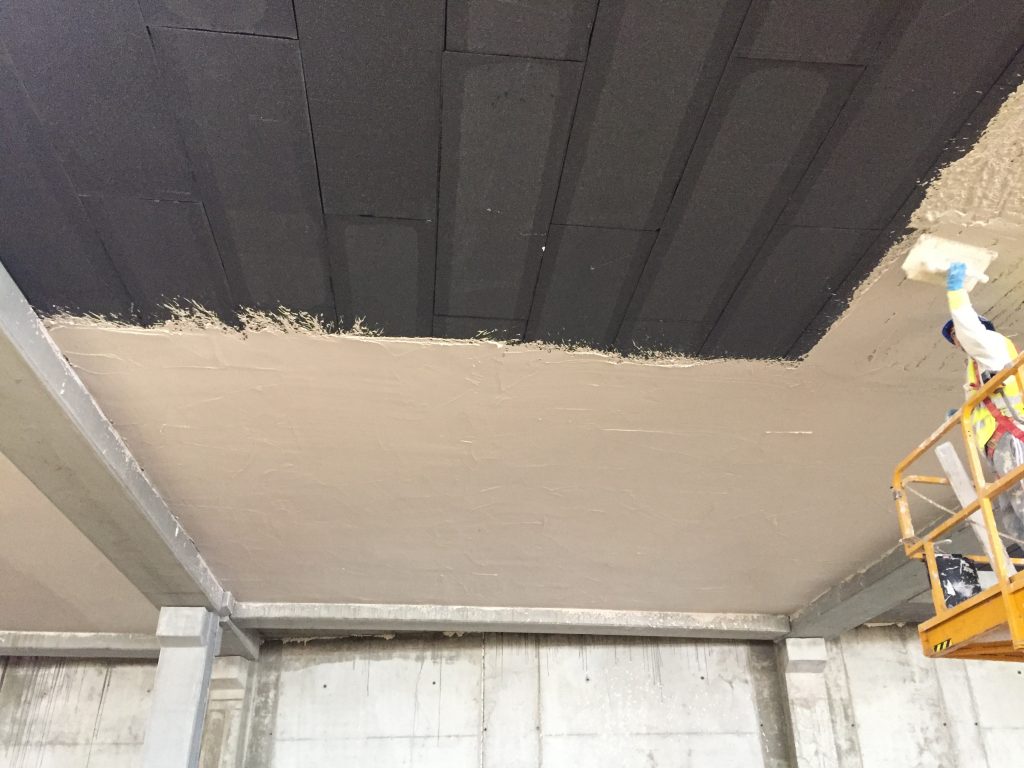

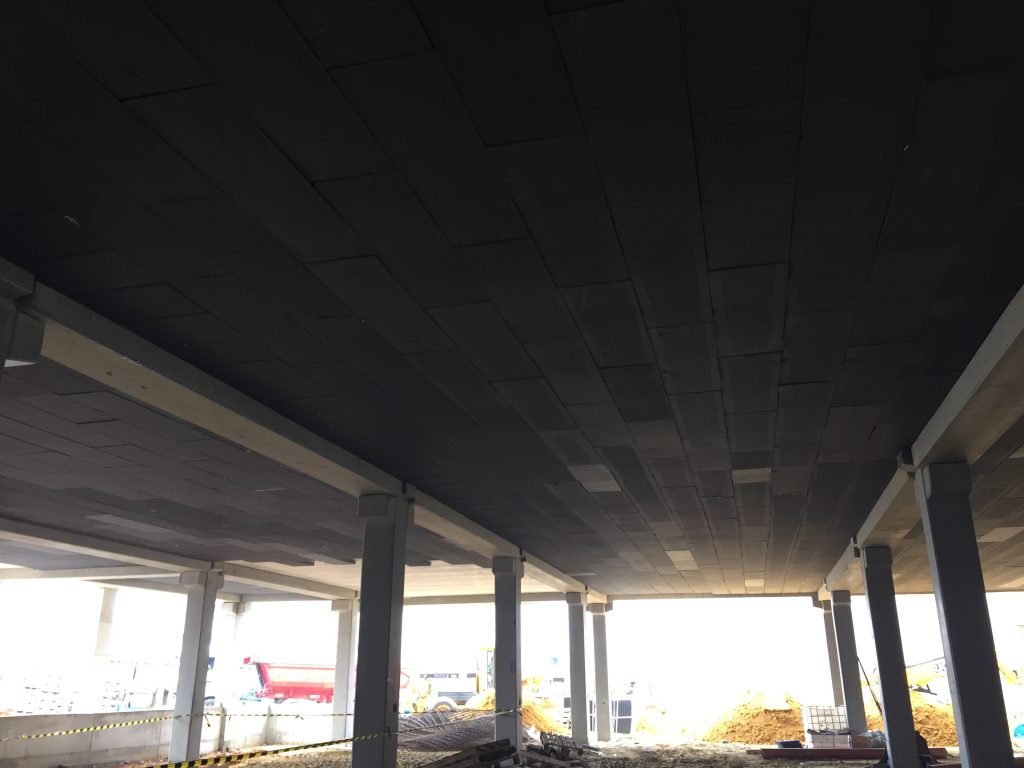

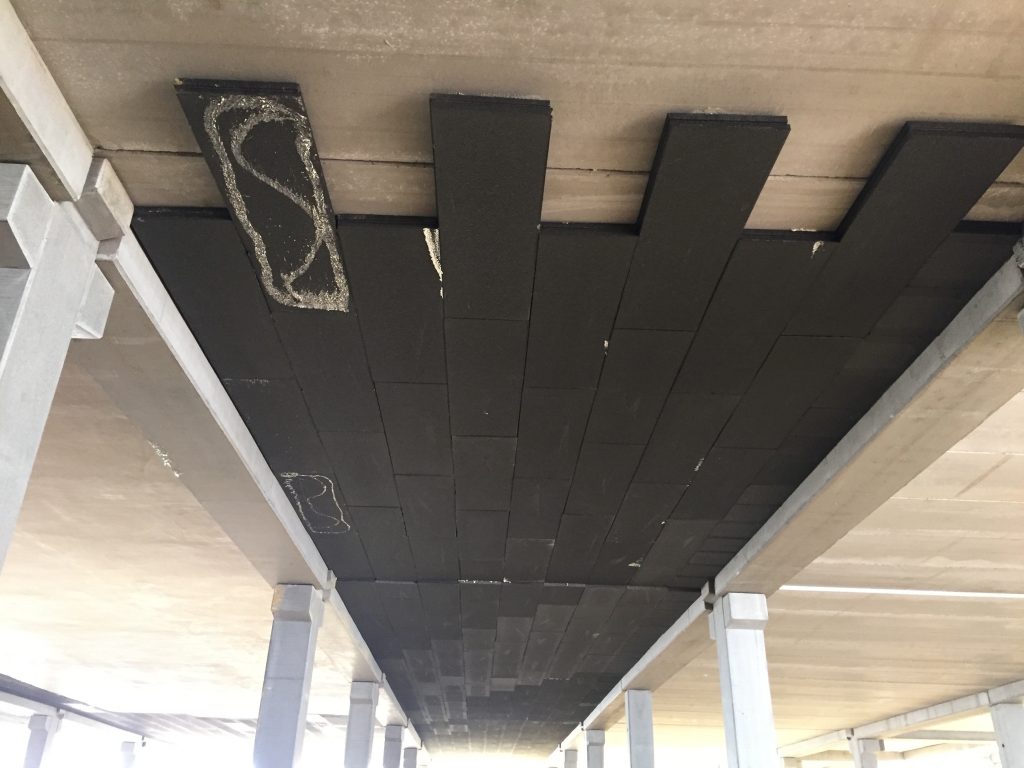

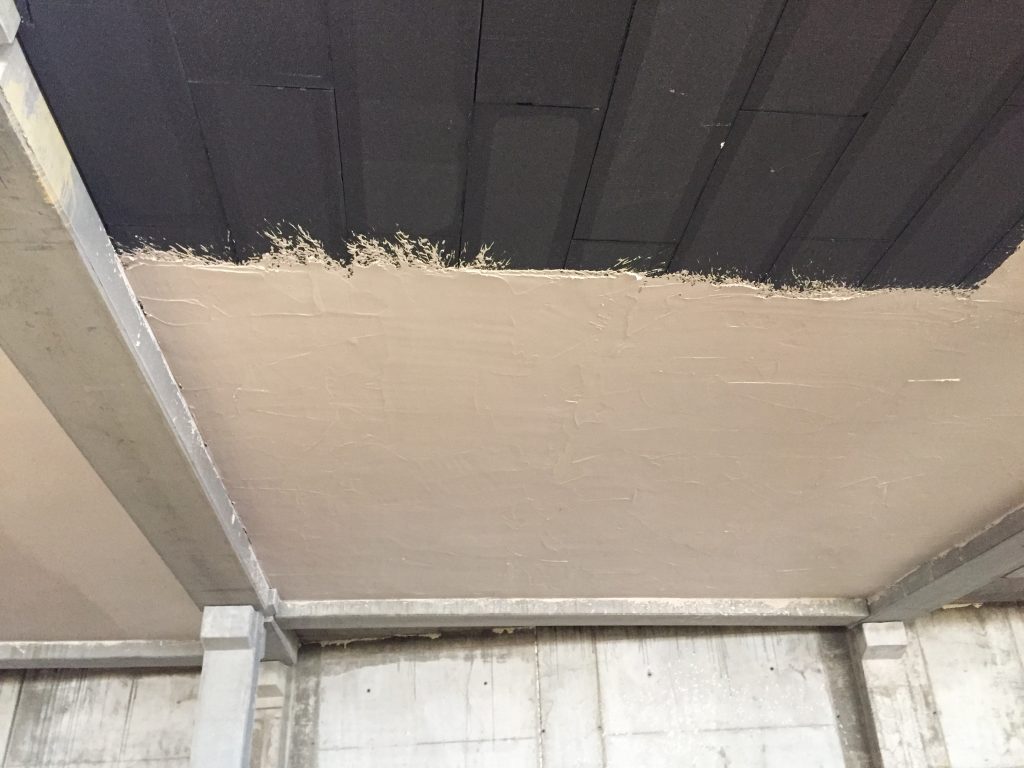

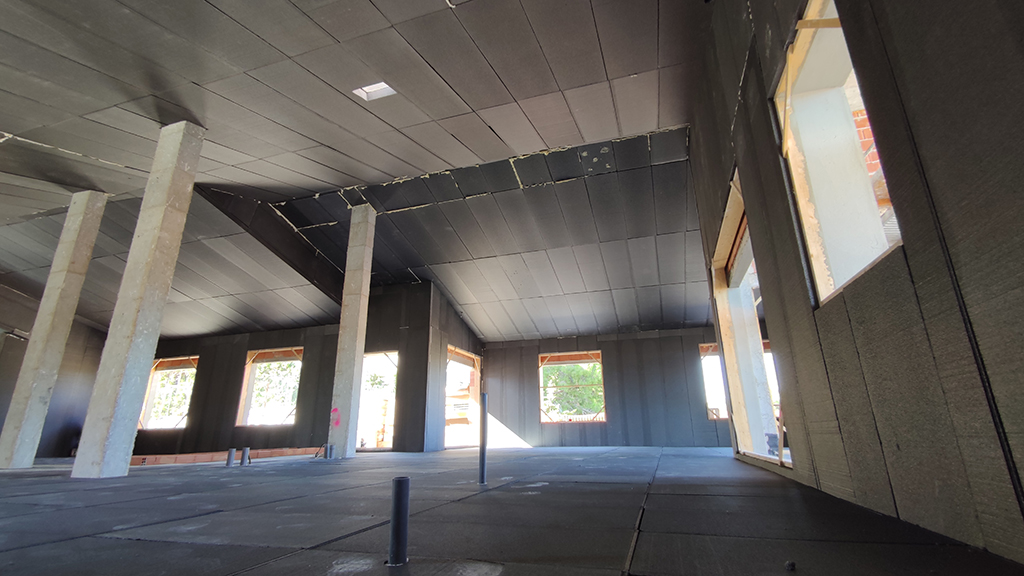

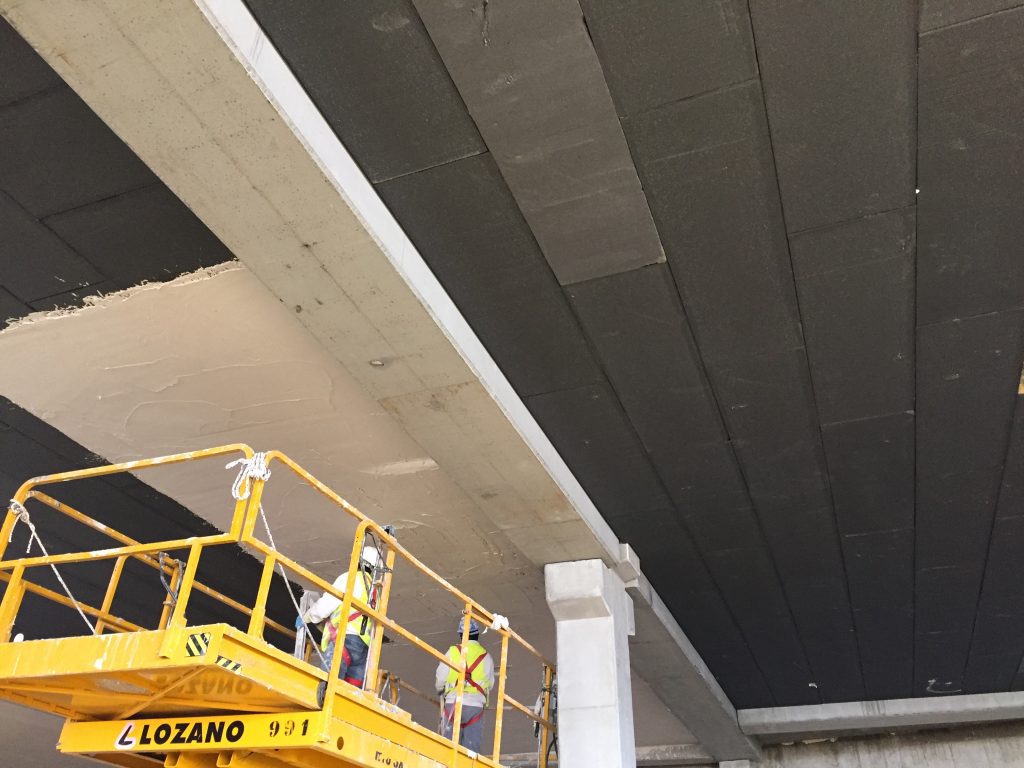

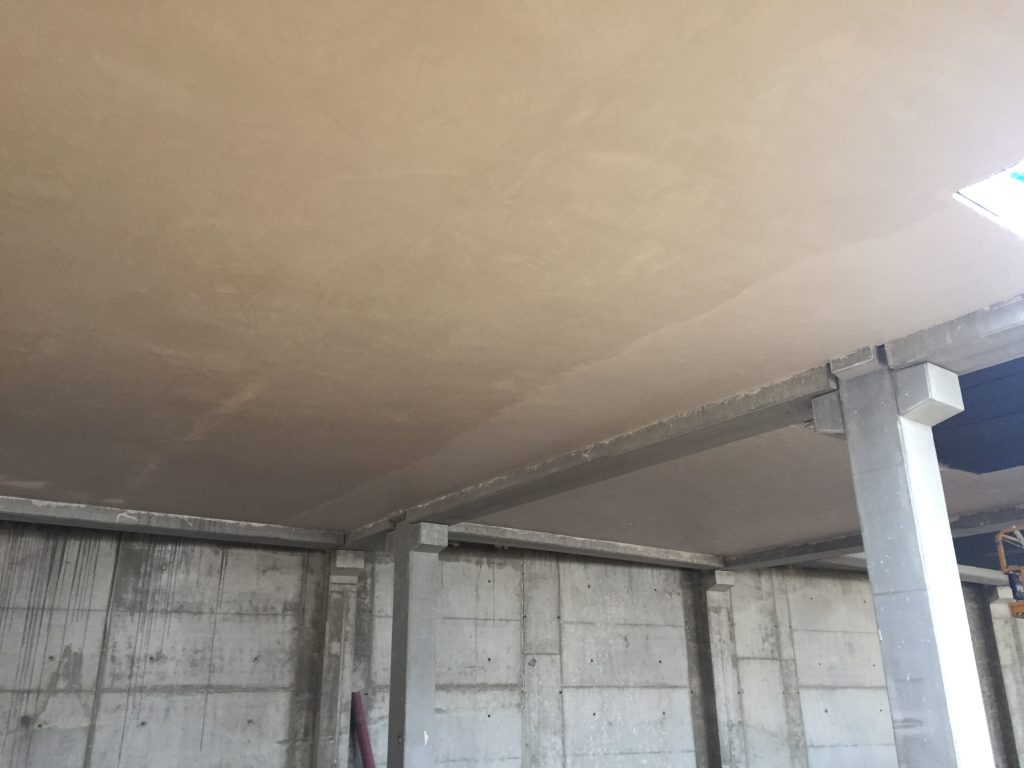

Application on floor in contact with the outside, placing the insulation under slab concrete floor.

SECTION

3D DETAIL

LEGEND

  1. Ceramic flooring
  2. Holding mortar
  3. Compression layer with distribution element
  4. Polyethylene film
  5. Acoustic mats: GRAFIPOL TR-0 Impact (λ = 0,033 W/mK)
  6. Reinforced concrete floor
  7. Thermal insulationo: GRAFIPOL TR-32 (λ = 0,032 W/mK) fixed with adhesive to the support
  8. Outer sleeve
Thermal insulation - Compliance with Spanish CTE - DB HE Dec. 2019 version
Weather area Thickness "e"
(mm)
“U” thermal transmittance of solution (W/m2K) “U” thermal transmittance recommended
in accordance with schedule E -DB HE (Dec. 2019 v.) (W/m2K)
α 30 0,52 0,56
A 40 0,45 0,50
B 60 0,35 0,38
C 80 0,29 0,29
D 90 0,26 0,27
E 110 0,23 0,23

DESCRIPTIVE REPORT

___m² of rigid expanded polystyrene (EPS) foam panel, Grafipol TR-32 SE «VALERO», in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0.032 W/(mK), Euroclass E reaction to fire, EPS designation code ‐ EN 13163 – L(3) – W(3) – T(2) – S(5) – P(10) – BS50 – DS(N)2.

Prontuario of construction solutions
adapted with CTE DB-HE (Dec. 2019)


Example of construction detail
UNDER SLAB CONCRETE FLOOR PREVIEW PDF .DWG
(AutoCAD)
.BIB
(Cypetherm)
.BDC
(HULC)
4.5.1_S.EX.1_GPTR32
Floating ground. Low forged insulation.

ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS

FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS

With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)

TECHNICAL INFORMATION

Thermal conductivity (λ) : 0,032 W/mK
Thickness(1): From 10 mm
Standard lengths(2): 2000 mm and 2800 mm
Standard width: 600 mm
(1) Cut to size in multiples of 5 mm
(2) Possibility of cutting to size
Contact us for other measurements
Cut:
For more information, contact us
