Termoimpact [Tiras]

Acoustic bands

Grafipol Termoimpact Tiras are rigid foam bands of low thermal conductivity black expanded polystyrene , complying with the spanish technical specifications of UNE-EN 12354-2.

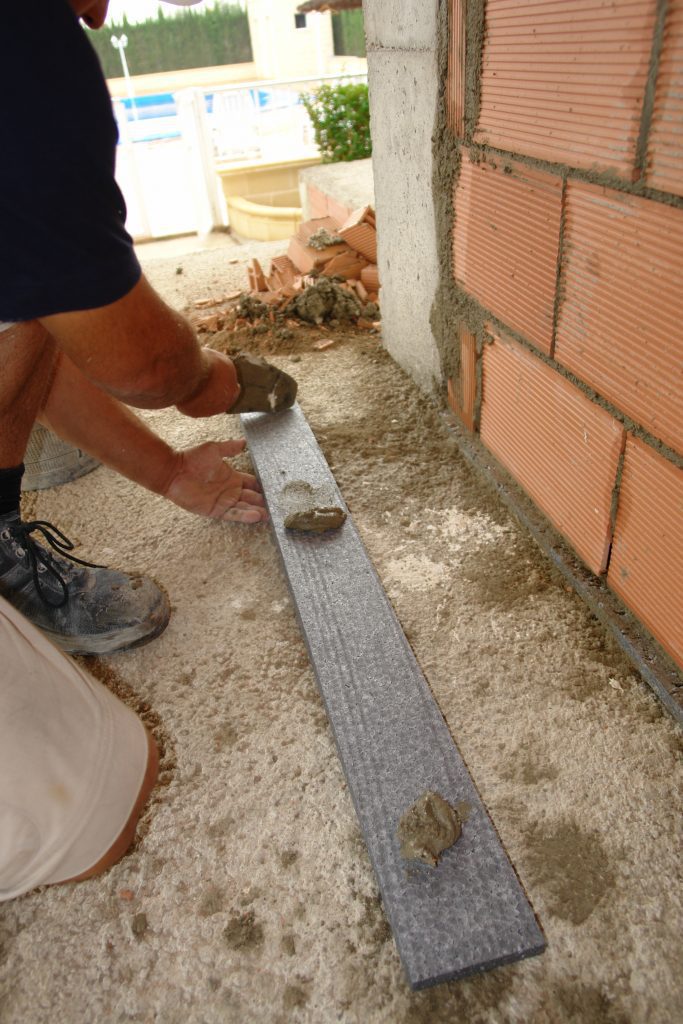

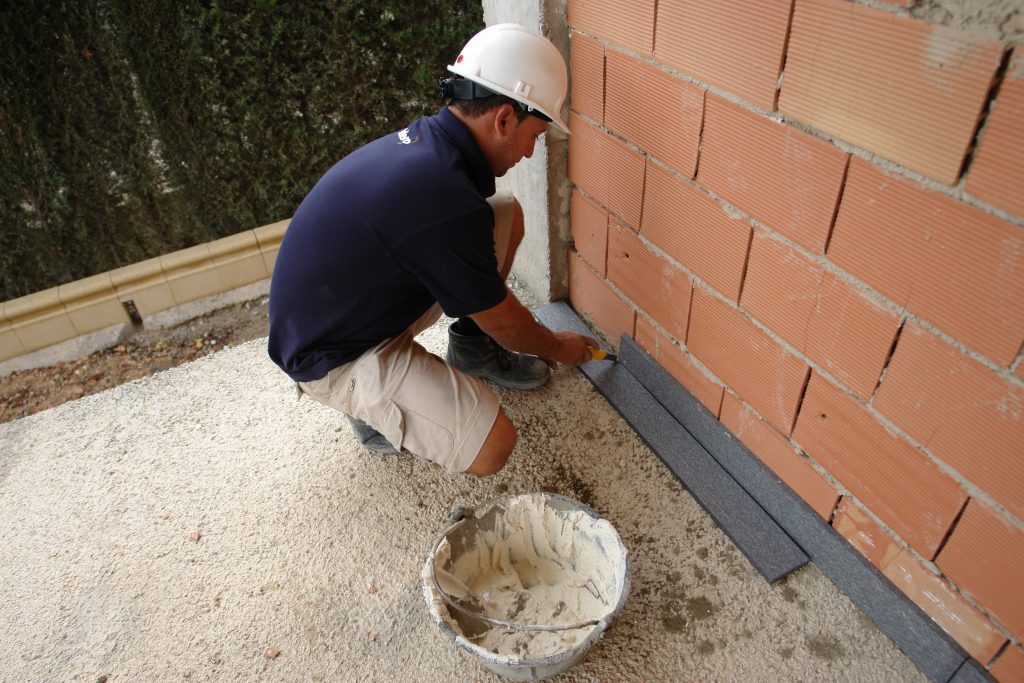

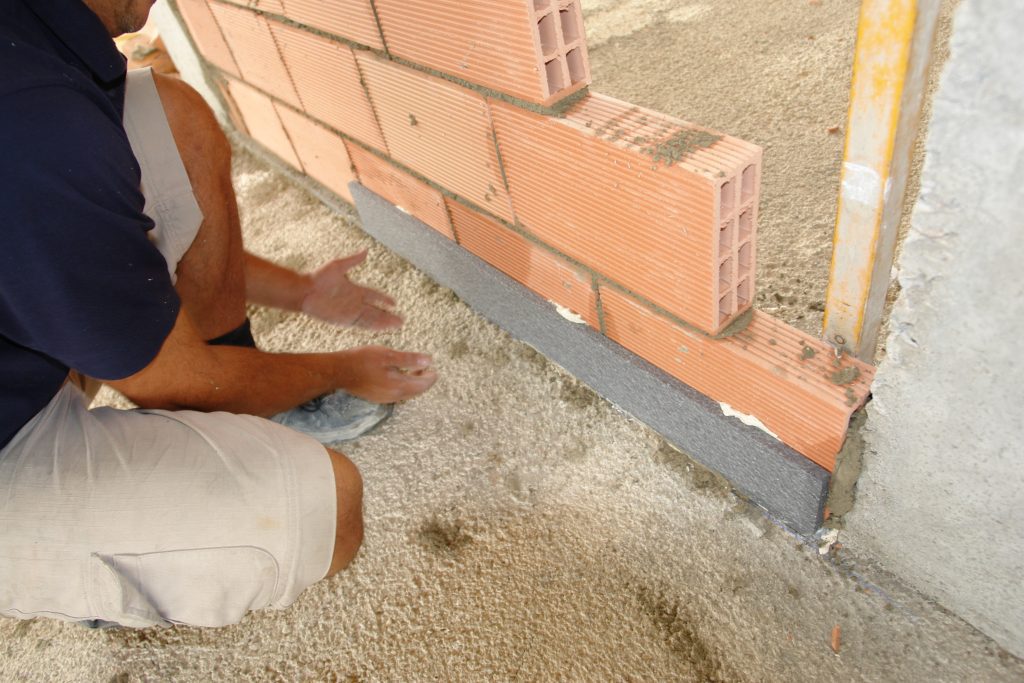

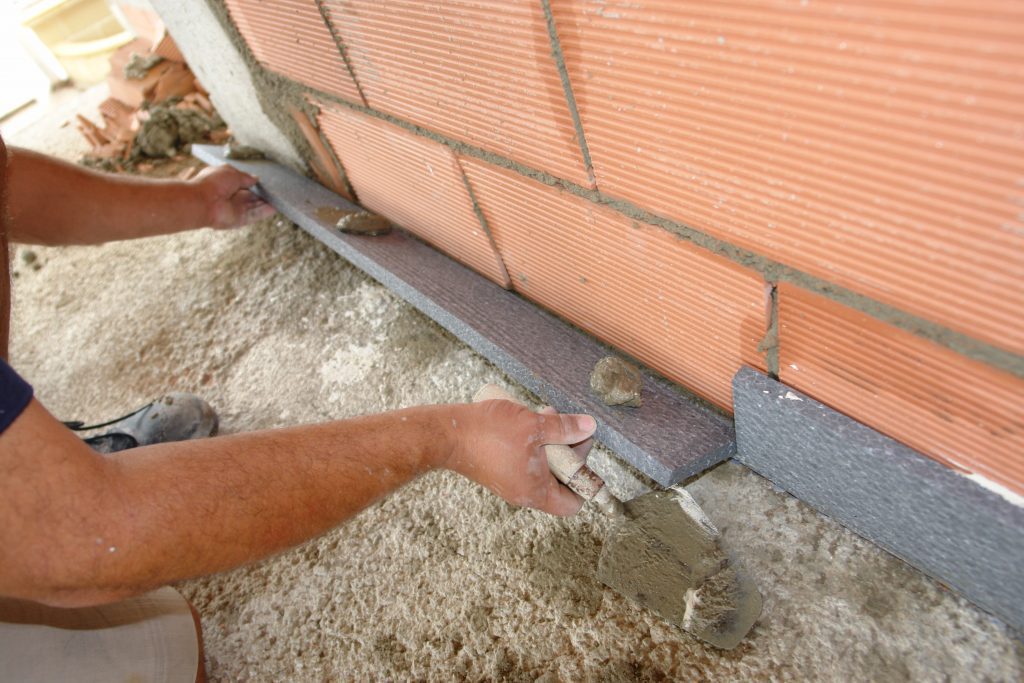

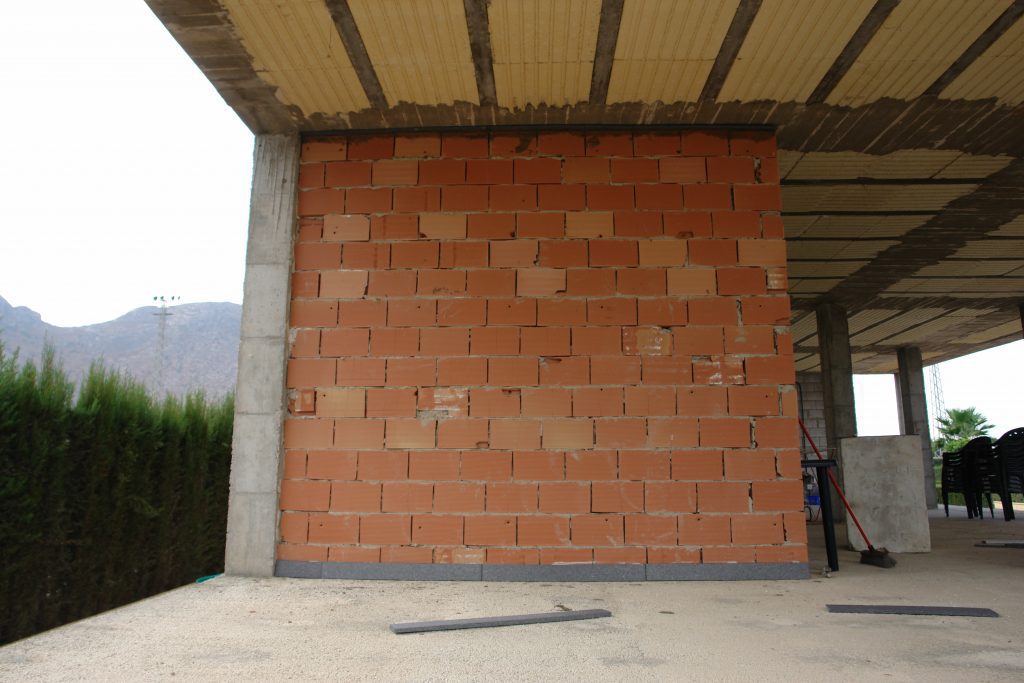

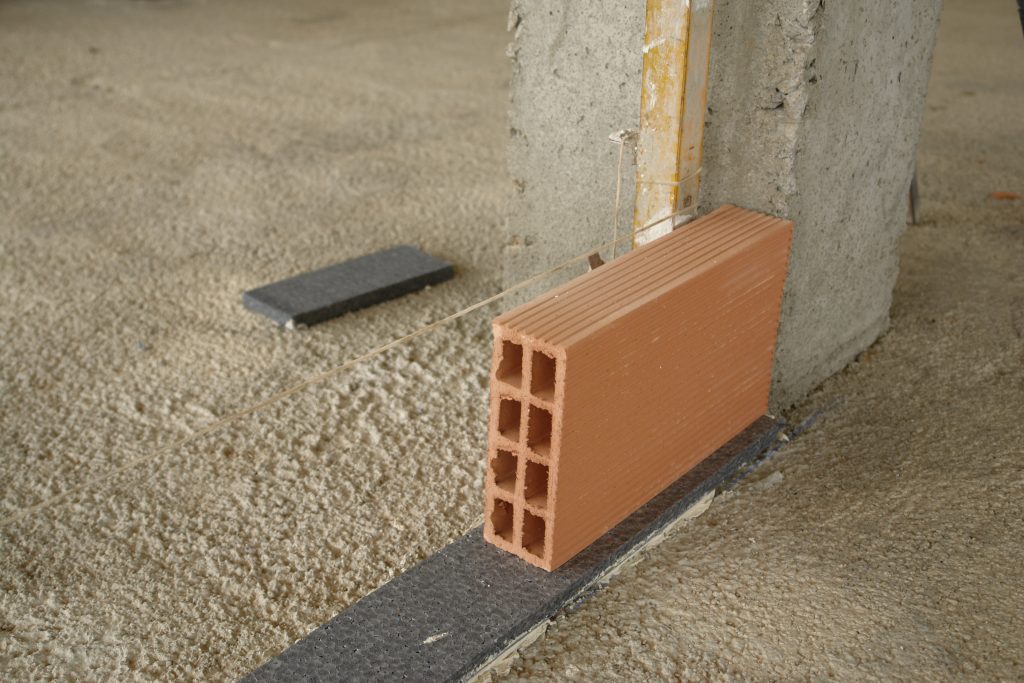

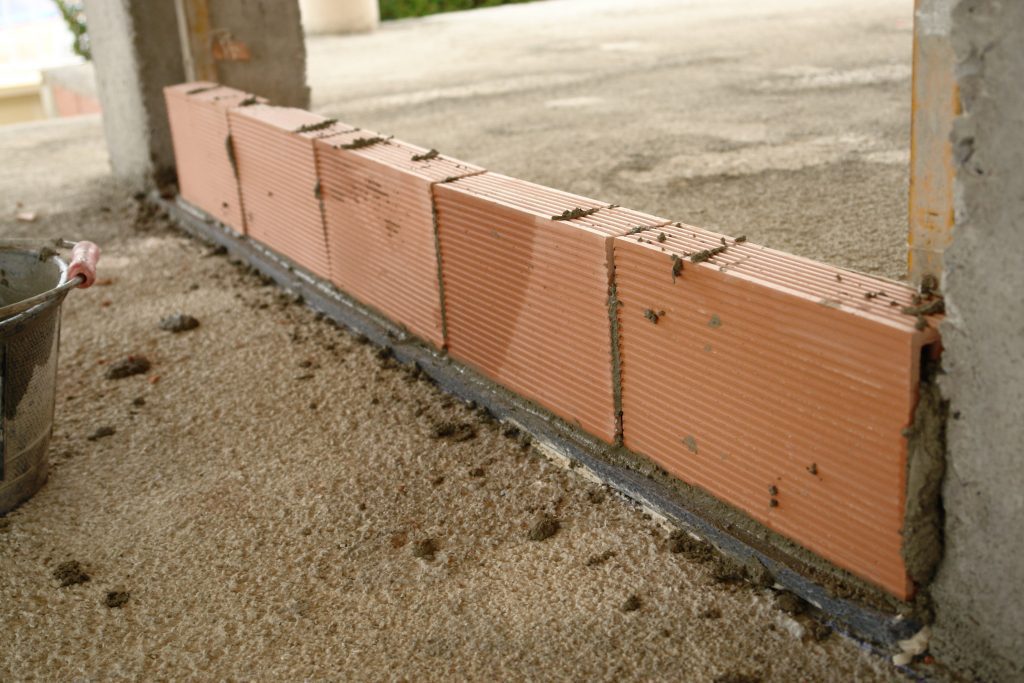

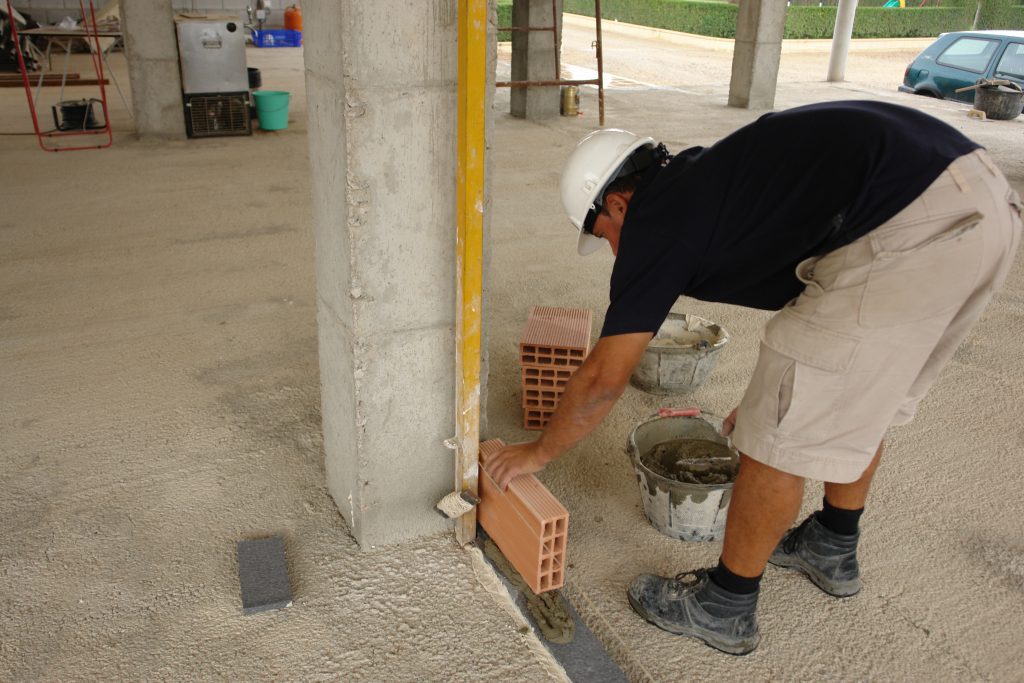

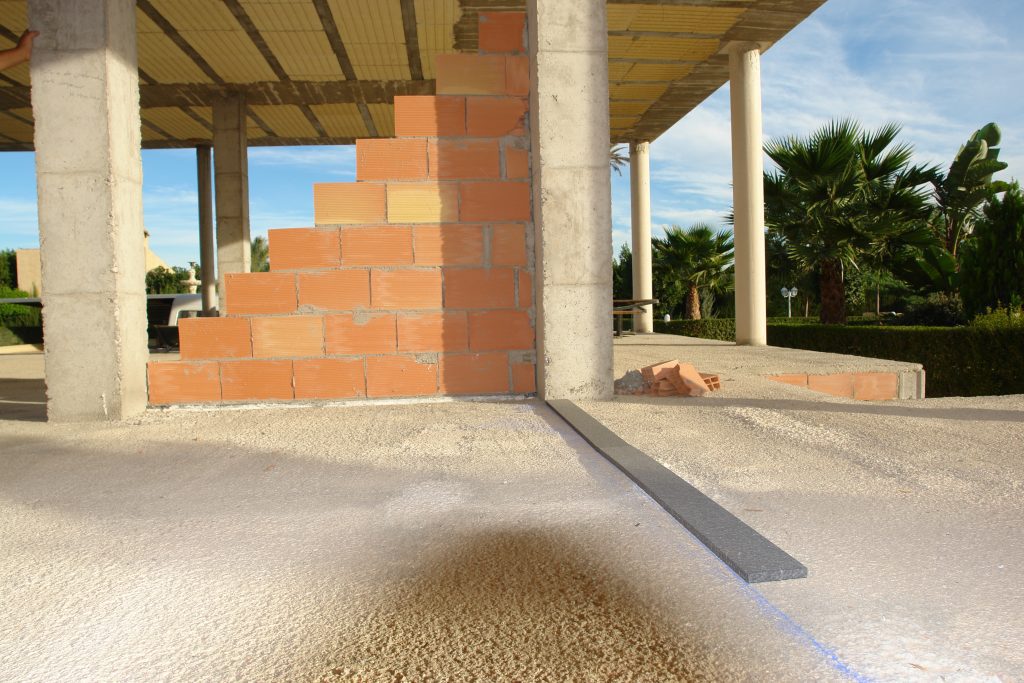

Grafipol Termoimpact Tiras bands must be fixed on the perimeter of the brick factory to be isolated, so that it is completely desolidarized from the structure by avoiding acoustic behavior to air noise to the final partition. Moreover, its use to prevent the partition of small fissures and cracks due to structural movements of the building.

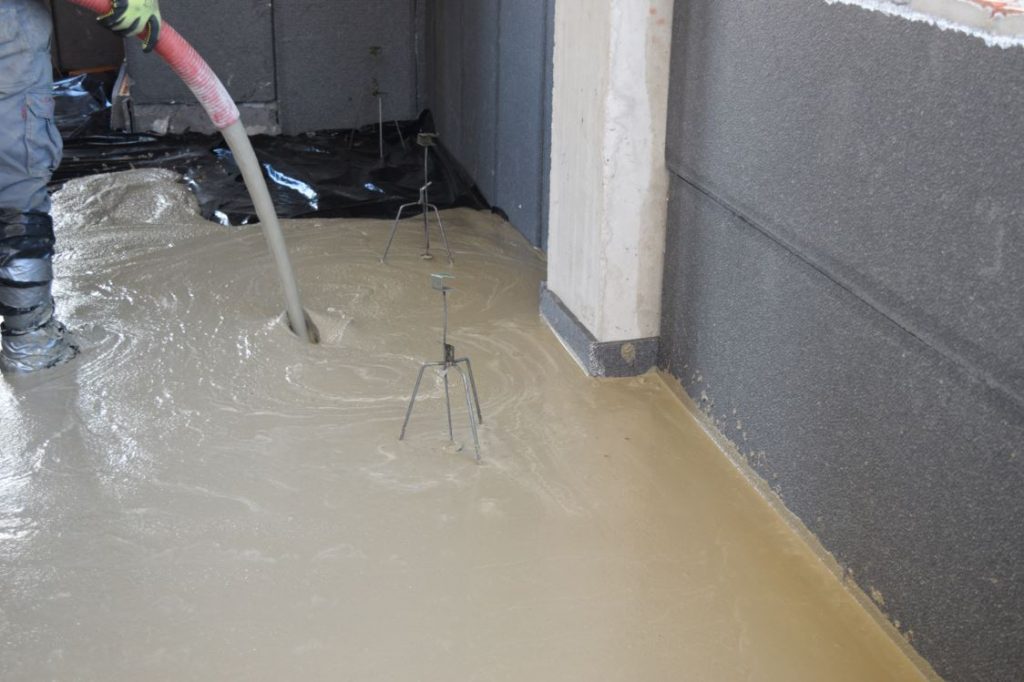

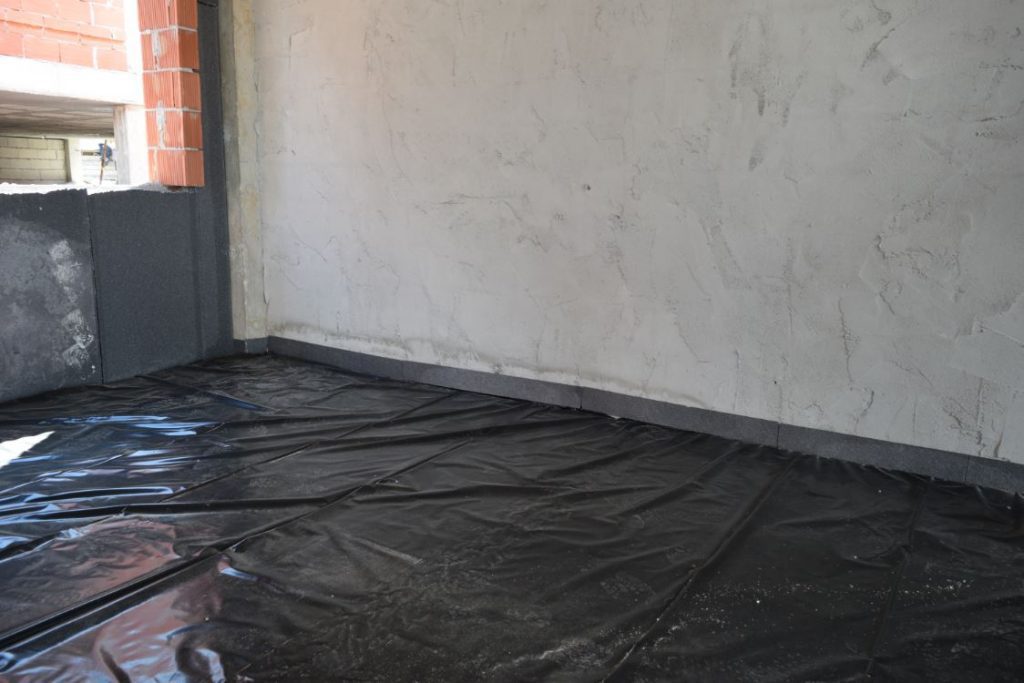

They are also suitable for placing in the perimeter of floating floors, in all encounters with vertical rigid elements, as the masses of the pavement and wrought are desolidarized, complying with the requirement set out in the spanish Basic Document DB-HR Noise Protection, as amended in December 2019 version, for the application of floating floors.

Construction detail

1. Floating tab application example

LEGEND

  1. Reinforced concrete wrought
  2. Acoustic strip: Grafipol Termoimpact Tiras
  3. Ceramic brick partition (LH7)

2. Floating floor application example

LEGEND

  1. Reinforced concrete wrought
  2. Floating floor
  3. Acoustic strip: Grafipol Termoimpact Tiras
  4. Ceramic brick partition (LH7)

DESCRIPTIVE REPORT

___ m² of rigid expanded polystyrene (EPS) foam panel, Grafipol Termoimpact Tiras «VALERO», in accordance with UNE-EN 13163, smooth surface and mechanised side ________, thickness of ___ mm, thermal resistance ___ m²K/W, thermal conductivity of 0.033 W/(mK), Euroclass E reaction to fire, improving the acoustics of the final partition wall by 10-15 dBA.

Prontuario of construction solutions
adapted with CTE DB-HE (Dec. 2019)

ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS

FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS

With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
Includes U thermal transmittance values for each solution, calculated with HULC
Documentation available to download (.PDF, .DWG, .BDC, .BIB)

TECHNICAL INFORMATION

Thermal conductivity (λ): 0,030 W/mK
Resistance to compression: ≥ 100 kPa
Thickness: From 10 mm
Standard lengths: 1000 mm
Standard width: 70 mm, 100 mm, 120 mm, 150 mm
Contact us for other measurements
Cut:
For more information, contact us
